The Ergofocus suspended wood fireplace alone in the dark, the teardrop body's rounded firebox window glowing with a log fire

Ergofocus

Fire within reach.

Wood, gas or electric · suspended  ·  5.0 on Google  ·  WETT-certified installs

Focus · Dominique Imbert, 1983

The teardrop that turns.

“A distinctive, enduring design, rivaled only by the iconic Gyrofocus” — the maker’s own ranking of its own catalogue. The brochure says it simpler: fire within reach. One drop, three hearts: wood, gas with ceramic logs and a remote, or the Holographik® electric that needs no flue at all.

I

The pulled drop

A 950 mm teardrop drawn down from the ceiling, its shoulder sloping to a wide slot of open fire. Bold and angular from one seat, soft from the next.

II

Frame the fire

The hearth rotates 360° — the maker’s words: frame the fire in the direction of your choice. The room decides, nightly.

III

Within reach

“Le feu à portée de vie” — the fire opening rides at hand height, 20″ off the floor, so tending the logs is part of the pleasure.

Photography: Focus

Seen in real rooms.

From the maker’s own book — the Ergofocus — wood, gas and electric — in rooms people actually live in. Tap the room to step inside.

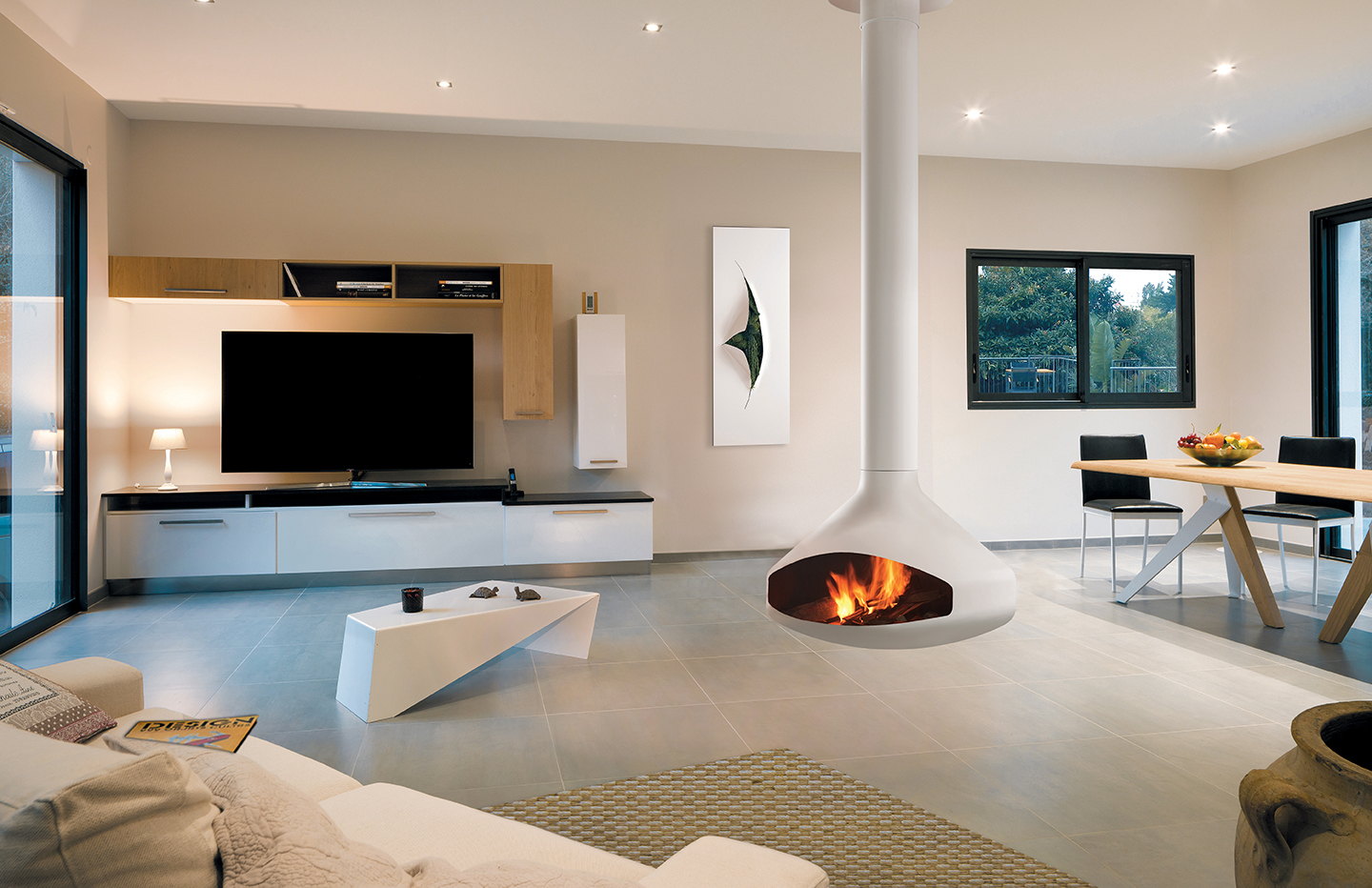

The white, in the family room

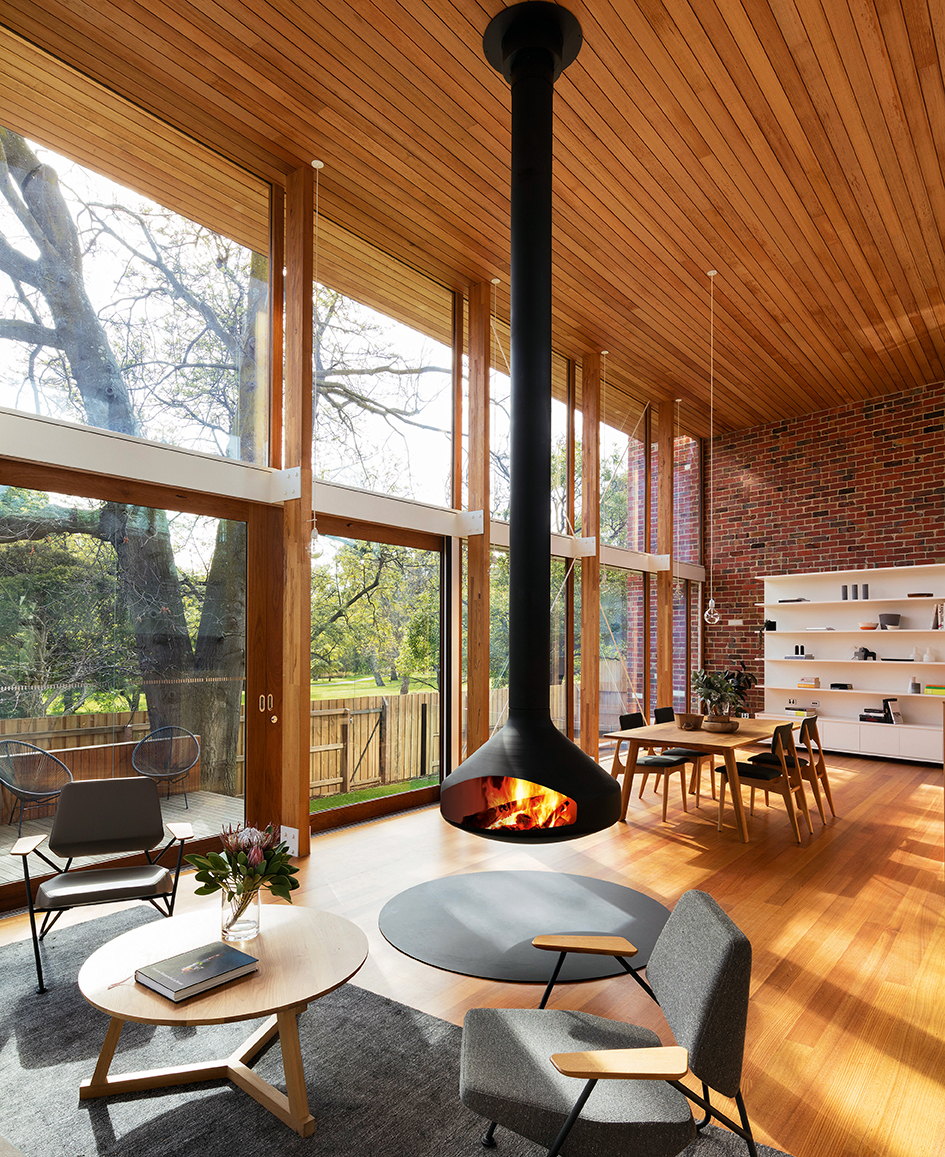

Under a timber cathedral

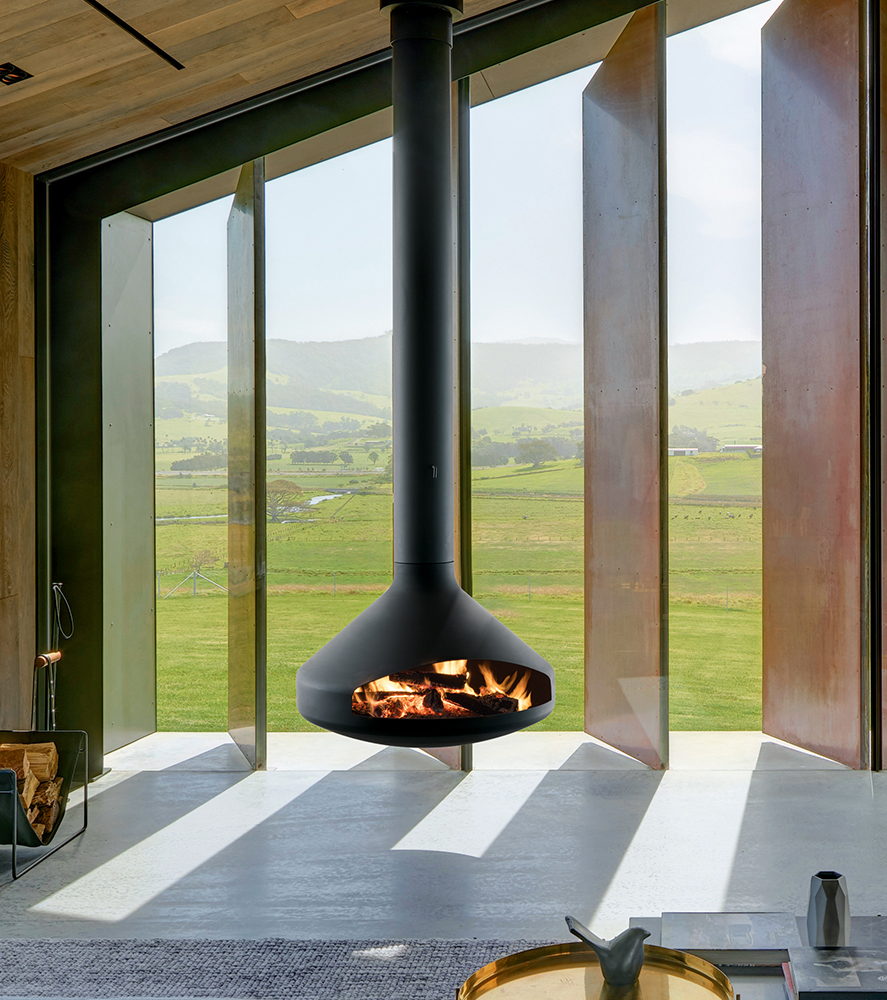

Hung above the valley glass

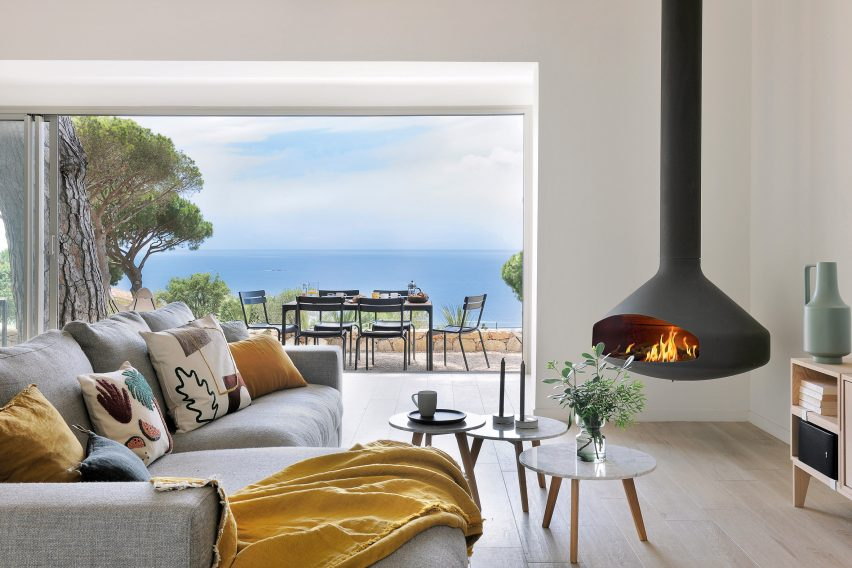

The teardrop by the sea

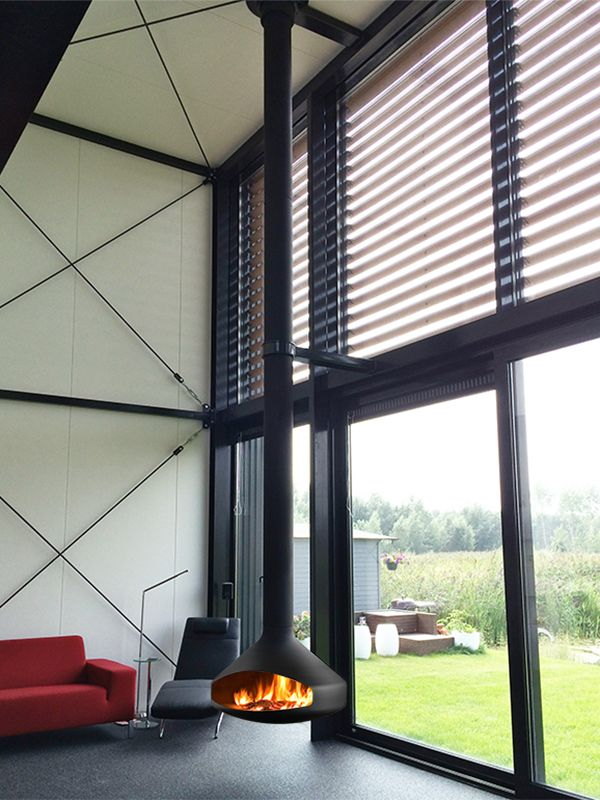

Drama, floor to glass

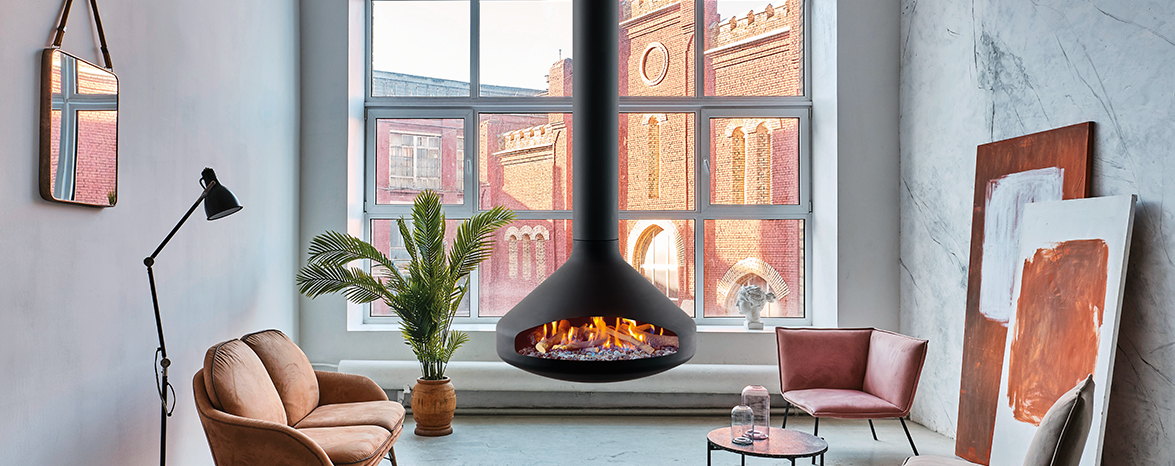

The gas Ergofocus, loft-hung

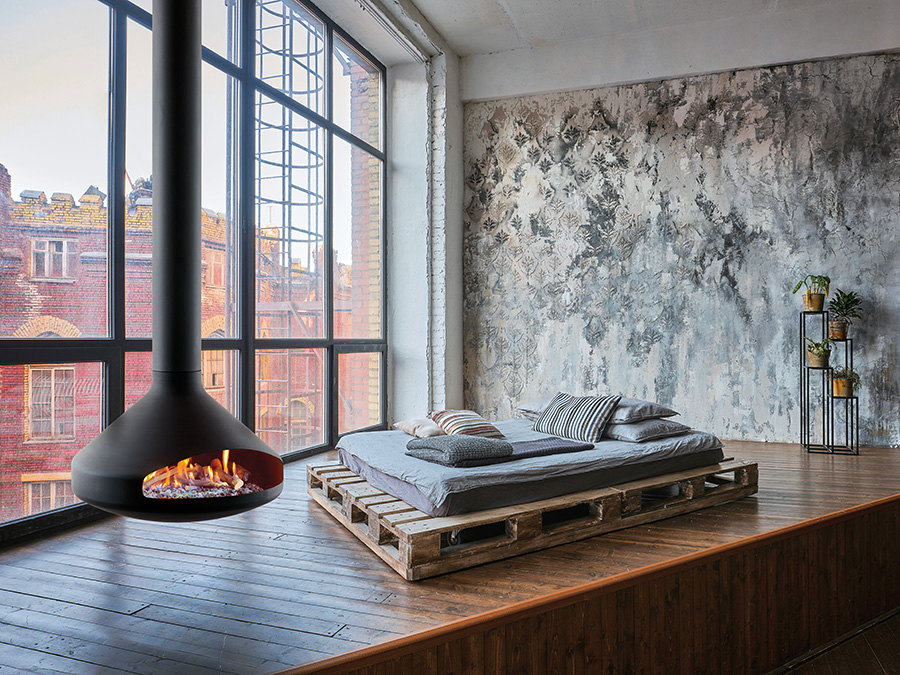

Gas flame, studio life

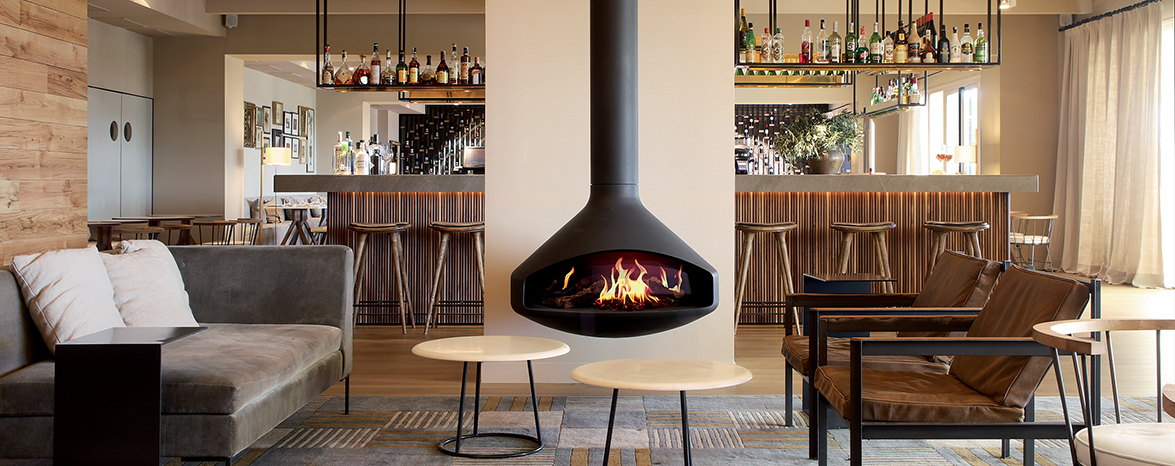

Behind the bar — no flue needed

Will it fit?

A slender drop that frees the whole floor.

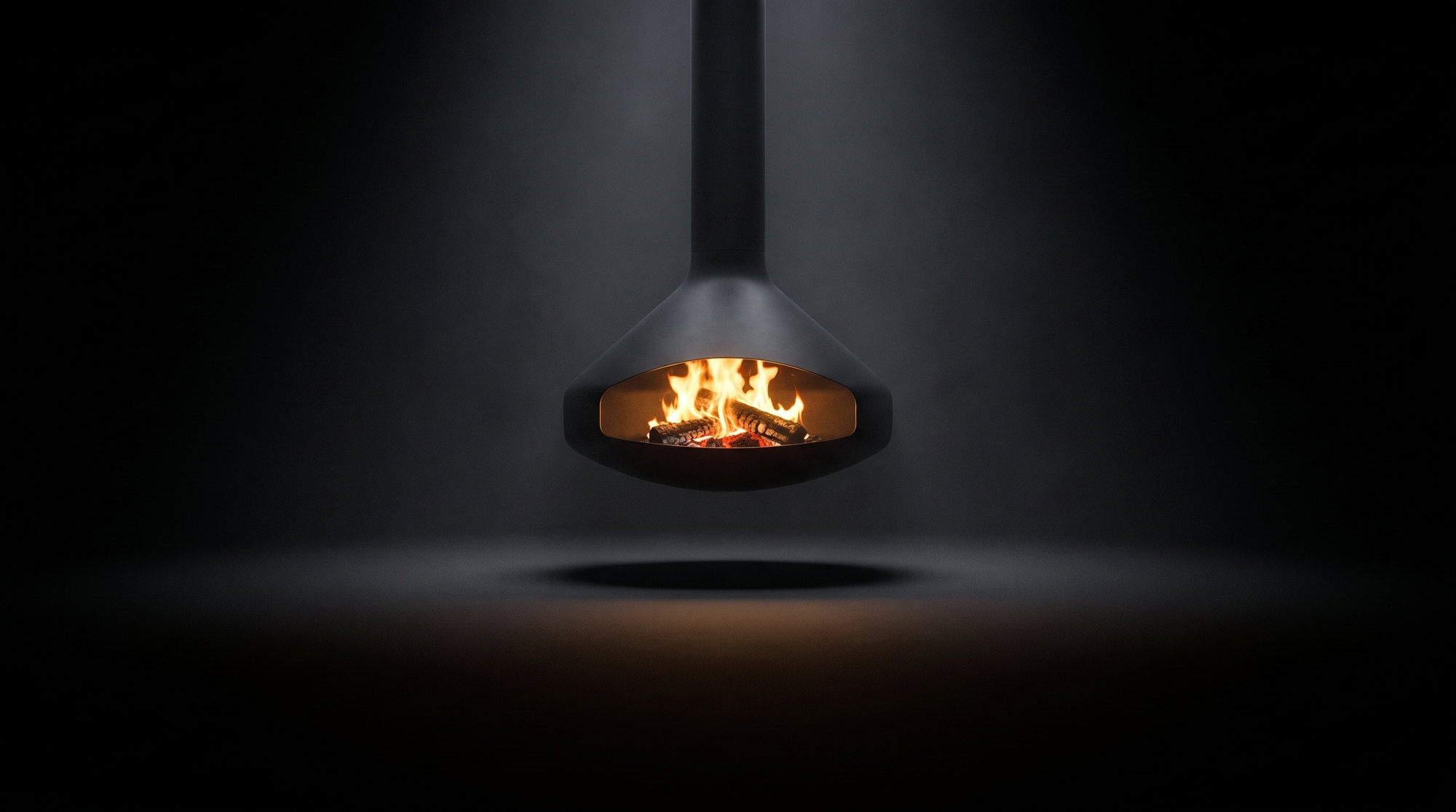

The Ergofocus face on: the rounded firebox window with its log fire, steel cheeks each side
8 ft manual min ceiling · wood Ø 37⅜″ across
17,060BTU/hr output, wood (listing)
46.1%efficiency, wood (listing)
181 lbshearth weight, wood (manual)
360°full rotation, wood

The maker’s numbers

Specifications

The wood original’s numbers below. The Ergofocus Gas runs 17,000–54,000 BTU/hr on natural gas (11,000–42,000 on propane) with remote and electronic ignition, pivots 100°, is approved over combustible floors and wants a 10 ft 7″ ceiling. The Holographik® electric draws 100 W from a plug, pivots 80°, and needs no chimney at all.

17,060 BTU/hr (5 kW)Heat output · listing
360° pivotingRotation
37⅜″ (950 mm)Diameter

The fire

Fuel
wood · natural draft
Output (listing)
17,060 BTU/hr (5 kW)
Efficiency (listing)
46.1%
CO (listing)
0.12%

The sculpture

Rotation
360° pivoting
Finish
matt black · white with black interior (option)
Diameter
37⅜″ (950 mm)
Visible opening
740 × 199 mm
Heights (manual)
body 40½″ · total 67 1/8″
Hearth weight (manual)
181 lbs (82 kg)

The room

Clearances (manual)
19″ sides & back · 38″ rotating
Floor protection (manual)
R≥0.6 · 18″ front (Canada)

The chimney

Flue
nominal 8″ — 203 mm listing · 205 mm manual
Chimney
factory-built HT: UL 103 (US) · ULC S629 (Canada)
Ceiling
9 ft listing · 8 ft manual minimum

The fine print

EPA
US EPA exempt (manual)
Certification
UL 737-1996 · ULC-S627-00

These are the numbers we install to — every number above is Focus’s own published figure, nothing rounded by us, nothing guessed. Where the maker’s listing and manual differ, we print both. We’re an authorized Focus dealer — the maker’s own locator lists our Coldwater showroom. See the maker’s own Ergofocus page — brochure and manual on hand at the showroom.

The Focus family

Nine sculptures, one house.

Real voices · 5.0 on Google

Installed by the crew people write about.

“…the knowledge and guidance we received in determining size, location and finishing design was invaluable.”

Phil M. · Google review

“As someone extremely particular and fussy I was very pleased.”

Josh R. · Google review

Quick answers

The three things everyone asks.

Will it fit under my ceiling?

The manual’s absolute minimum is 8 ft; the listing’s 274 cm (9 ft) is the supplied flue package — two different truths and we quote both. It wants 19″ to walls, 38″ of swing room if you’ll rotate it, and a non-combustible pad (R≥0.6) reaching 18″ out front in Canada. Send a photo of the room and we’ll confirm before you spend a dollar.

What chimney does it need?

A factory-built HT chimney — UL 103 in the US, ULC S629 in Canada — on a nominal 8″ natural-draft flue at least 14 ft tall. The listing says 203 mm inside, the manual 205 mm: same 8″ system, quoted both on principle.

Who installs a hanging fireplace?

A WETT-certified crew — ours. The 145 lb suspension plate carries the whole fire, so the ceiling gets engineered first; then we hang it, flue it and balance the rotation to the maker’s manual. The annual sweep after that is one call.

What it costs

Priced to your home — not from a chart.

Every wall is different — framing, venting, gas line — so your price is real, not a guess.

Tell us about your wall

Two minutes online. Photos help; the booking machine takes them.

Get your real quote

Dan prices your exact install and walks you through every line of it.

Installed by the pros

Nick’s crew frames it to the maker’s spec, runs the venting, and leaves the room clean.

Request 2026 pricing

Or come see it in our Coldwater showroom — the espresso will be on.
