The Stûv 16-in wood insert burning flush in a black masonry wall — a broad landscape window of fire

Stûv 16-in

An existing hearth. Modern performance.

Wood-burning  ·  5.0 on Google  ·  WETT-certified installs

Stûv · Wood Inserts

No renovation. New fire.

“The s16-in integrates into your existing masonry hearth, restoring its full function ... without major renovation work.”

I

The width stays

“In a masonry hearth, the width of the opening is part of the experience. The s16-in preserves it, offering a fire view that is nearly as generous as the original.”

II

A face that disappears

“Its clean lines fade into the background... With no visible handle, the door is opened using a removable key. Convection is fully integrated. No visible grilles interrupt the design.”

III

Three frames

Finishing frames in StûvGrey for every size: Thin-edge (“frameless effect”), Picture-type 2″, Picture-type 4″ — the retrofit dressed exactly to your masonry.

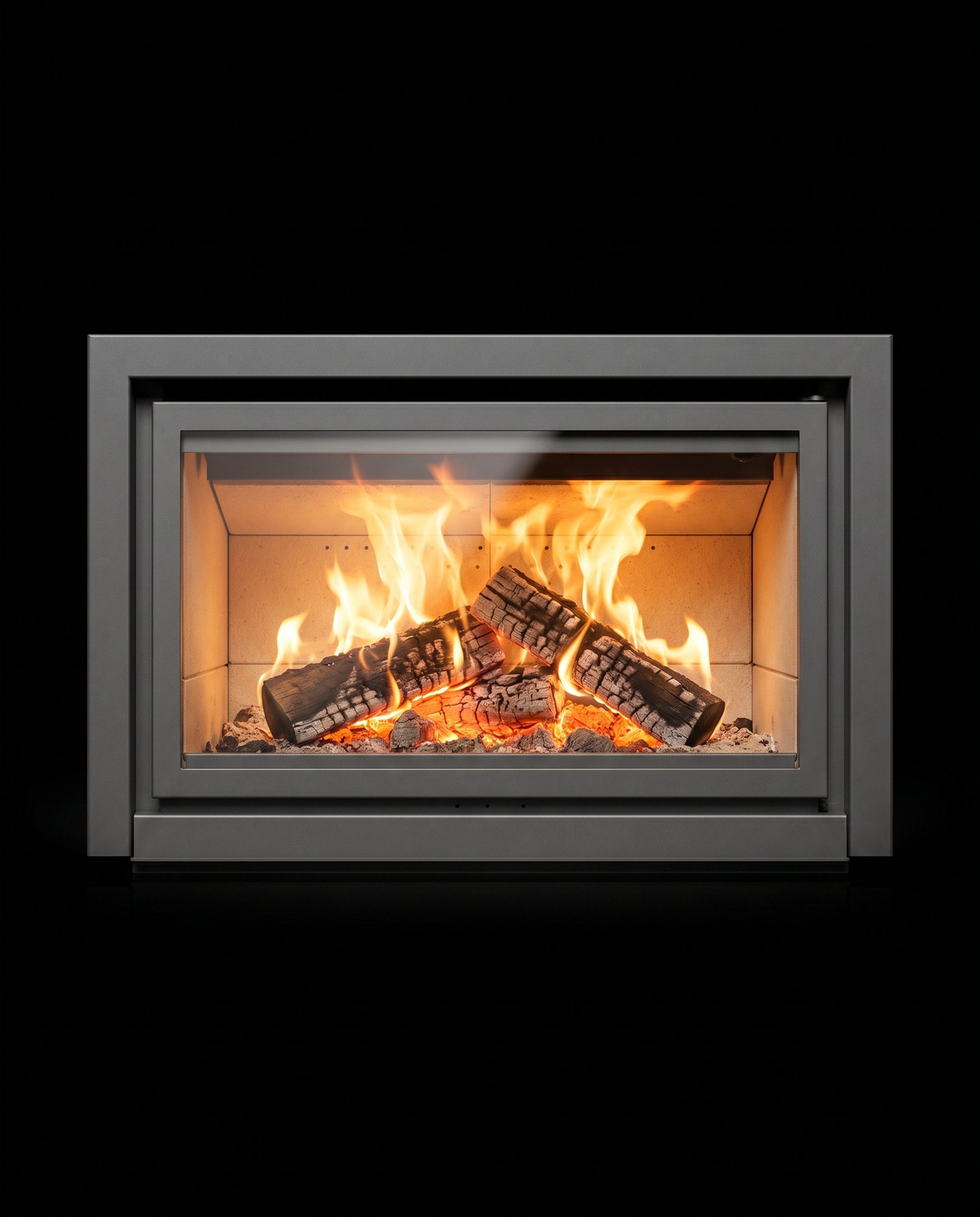

The 16-in’s full face dead-on
Clean face · dead-on

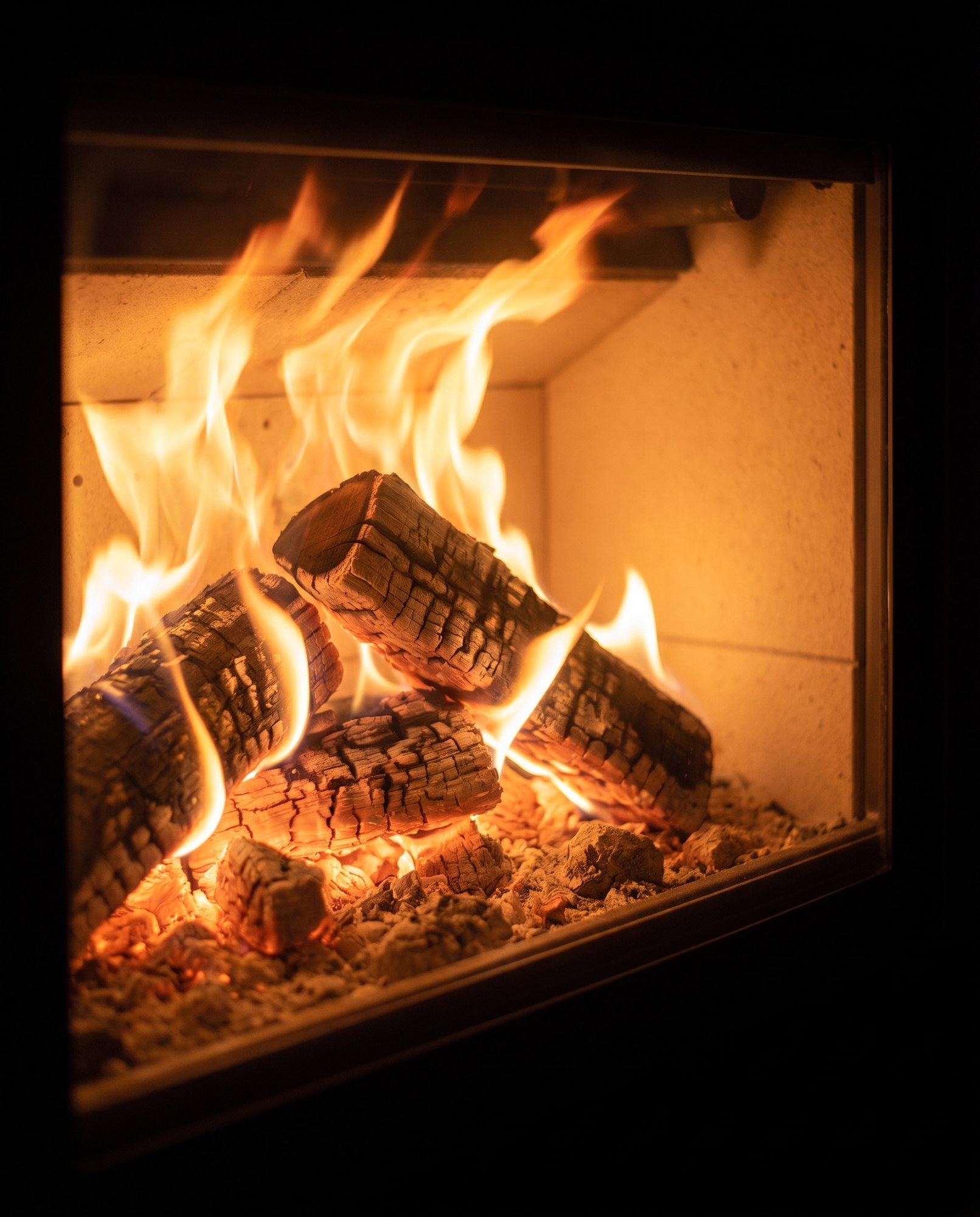

The 16-in’s split-log fire on the firebrick
Up close · no handle anywhere

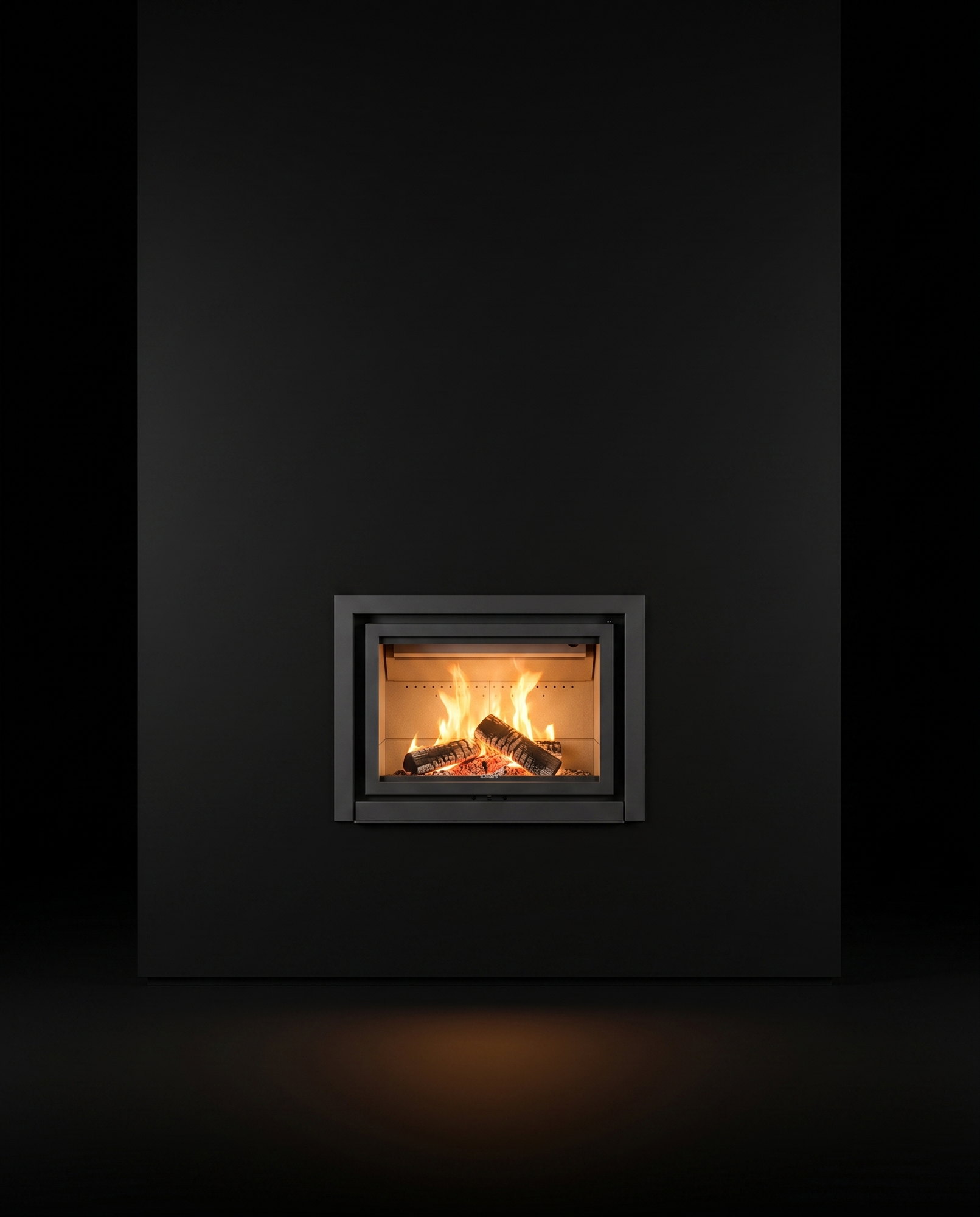

The 16-in small and glowing in a broad black chimney breast
The hearth · pulled back

Photography: Stûv

Seen in real rooms.

From the maker’s own book — the Stûv 16-in in rooms people actually live in. Tap a room to step inside.

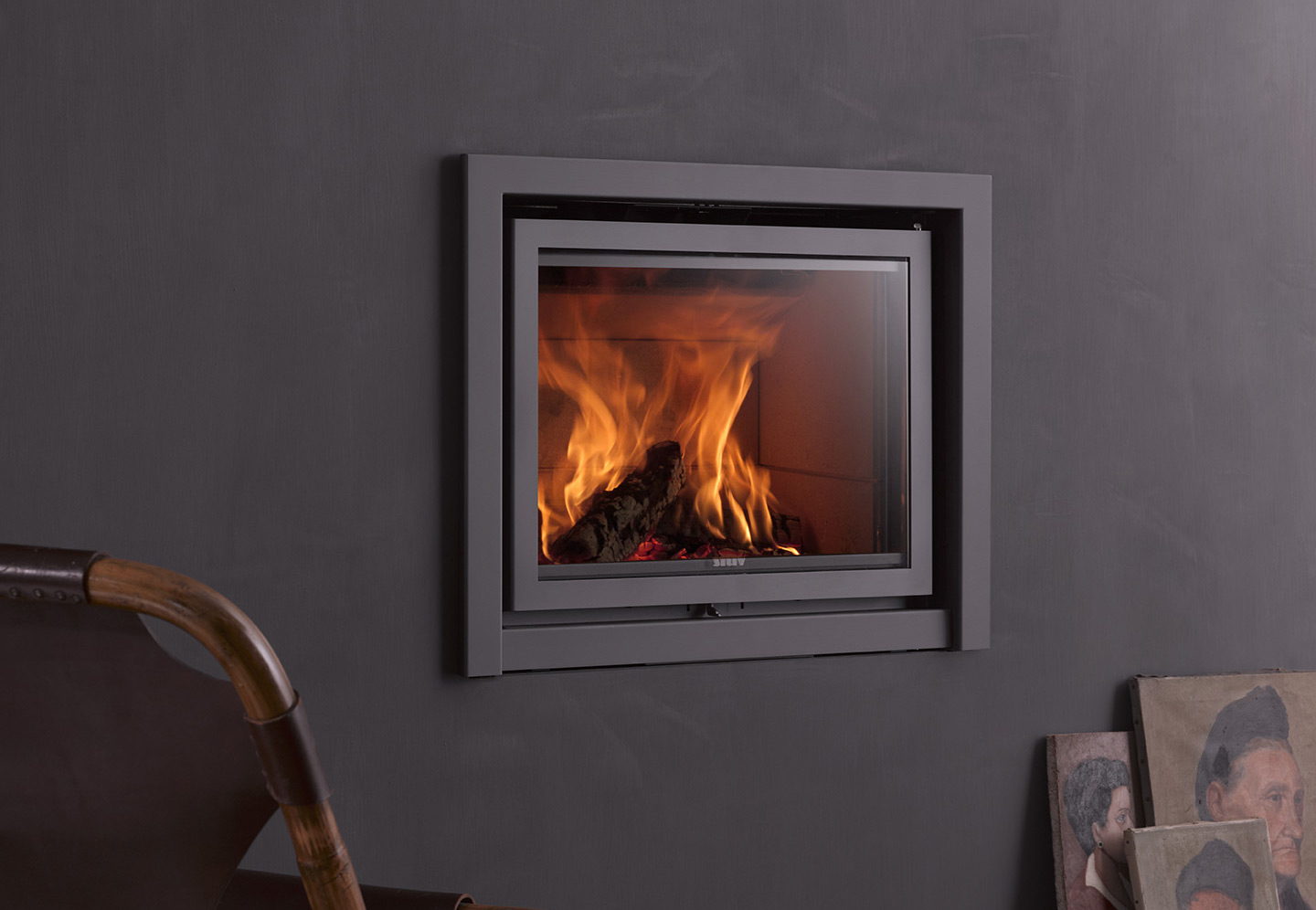

Flush in a dark wall

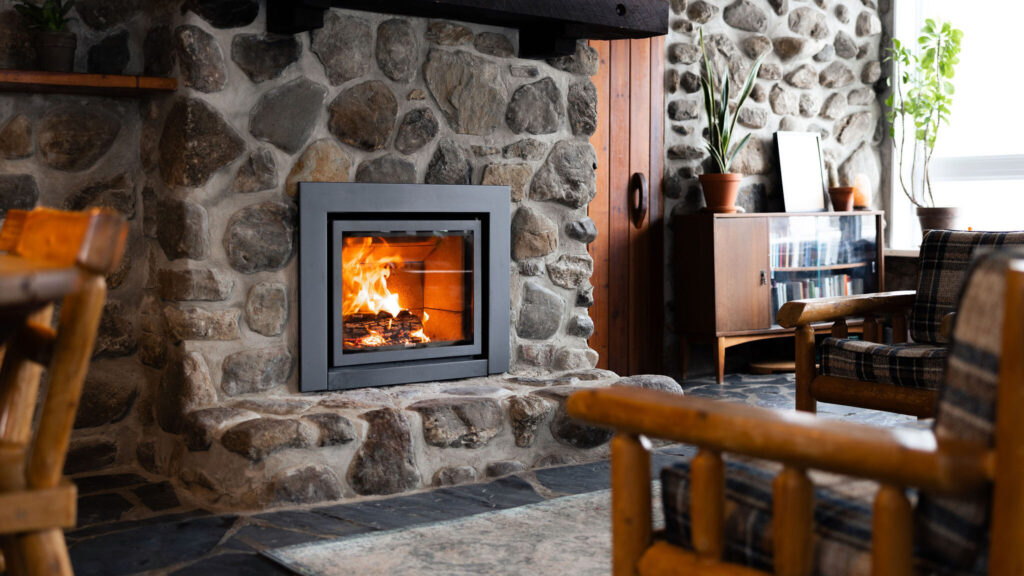

In the log cabin

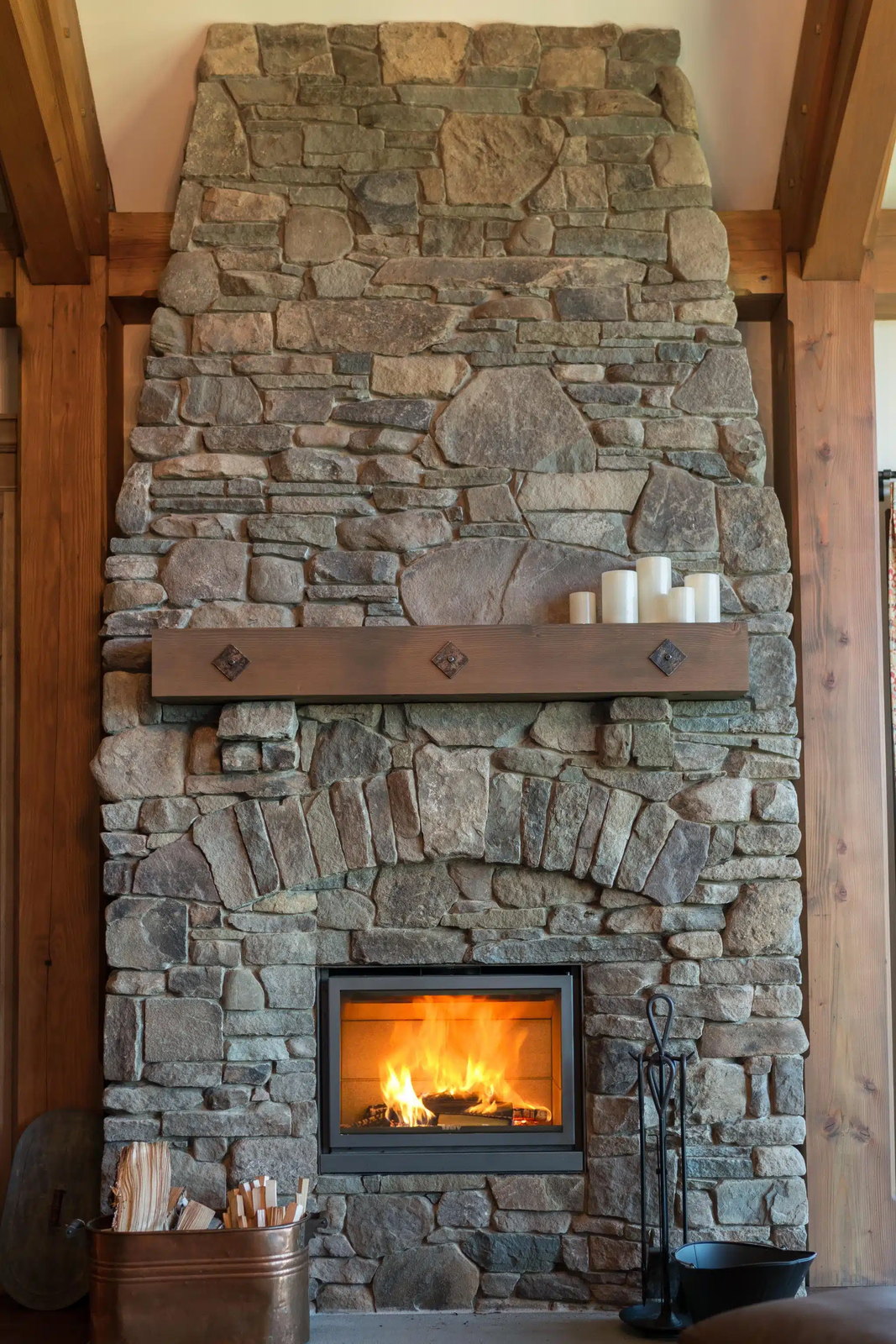

The fieldstone lodge

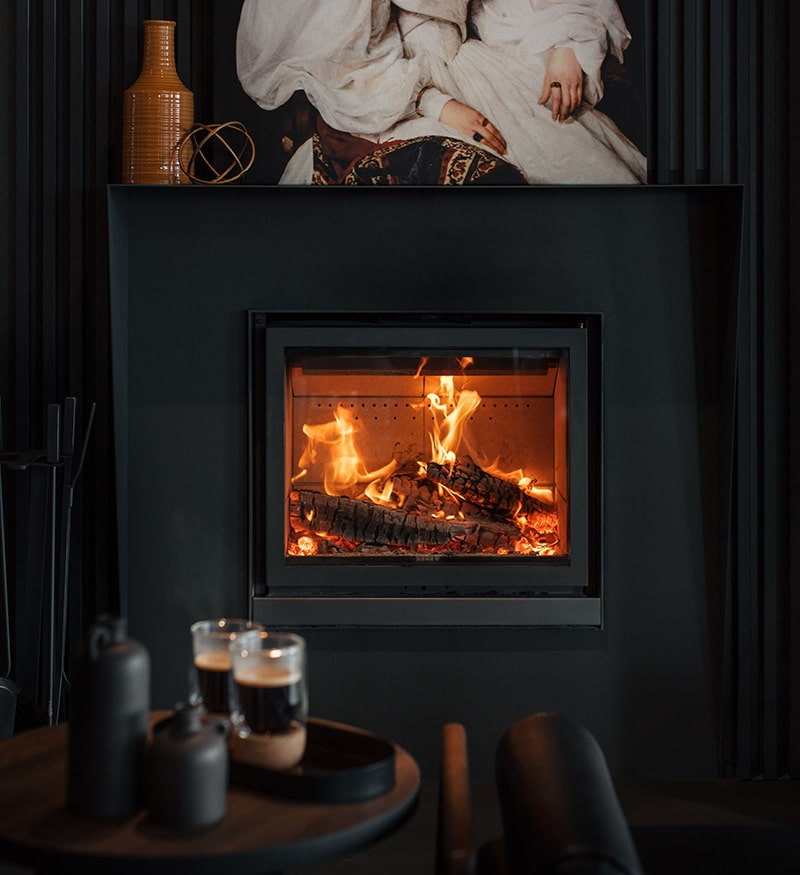

Black on black · coffee on

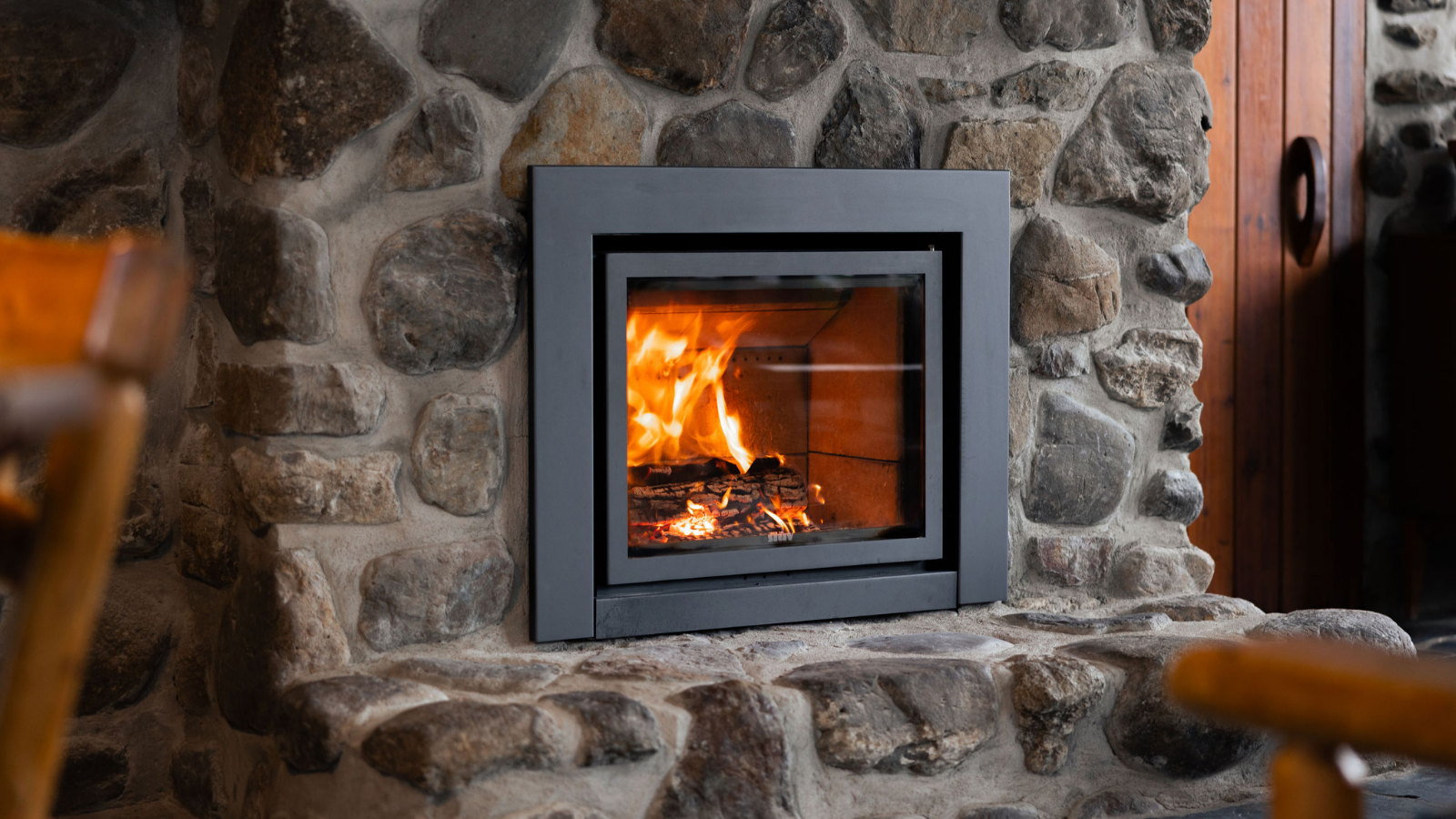

Fieldstone, Eastern Townships

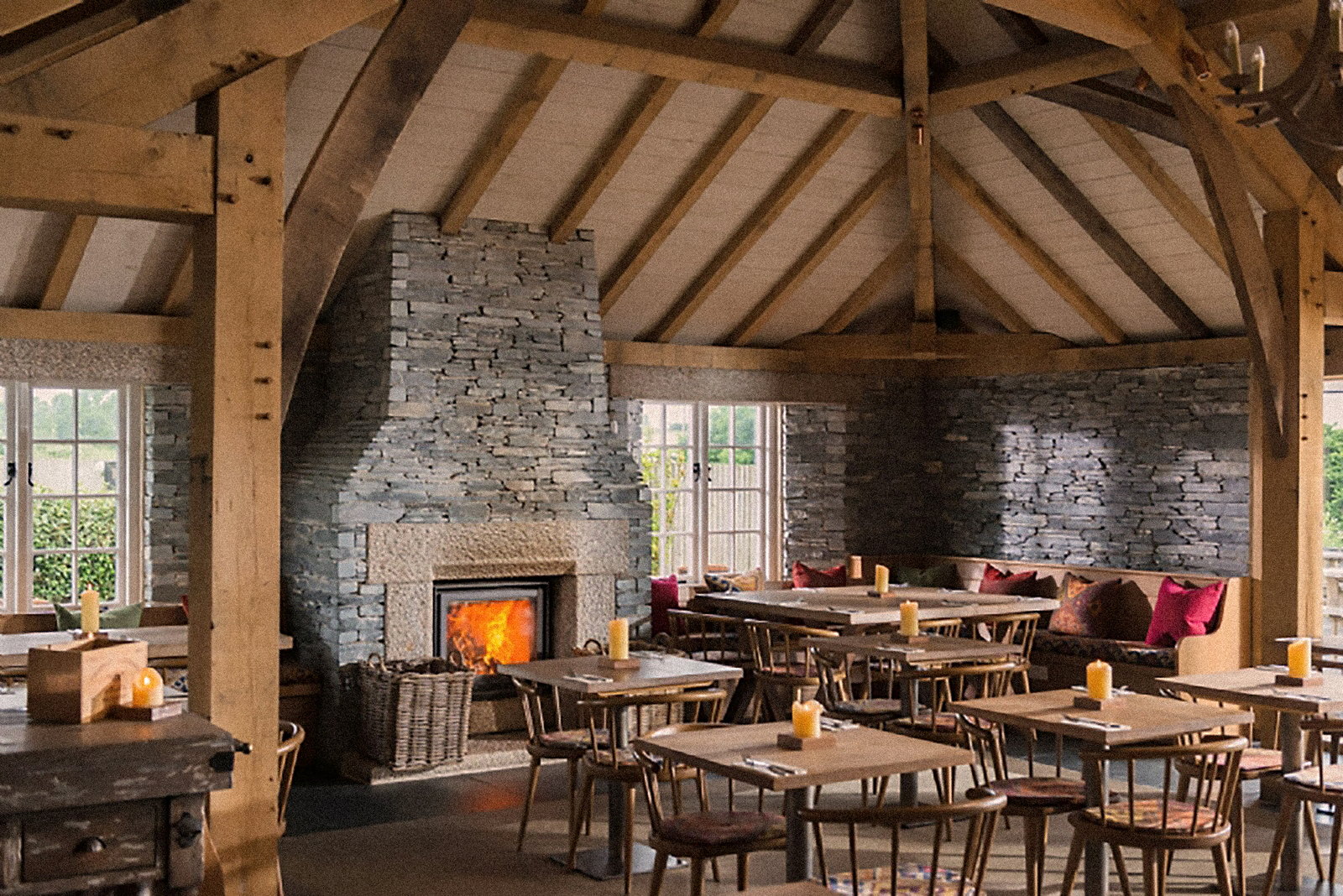

The great hall

Will it fit?

Measure the opening once.

The Stûv 16-in face with its slim StûvGrey frame
23-7/8″ high · glass 16-9/16″ 22-7/8 / 26-3/4 / 30-3/4″ wide
86,000BTU/h max, 78 size (maker’s figure)
2,100 ft²heating area, 78 size
71%EPA efficiency, 58 size (66/67% for 68/78)
25″max log length, 78 (17/21″ for 58/68)

The maker’s numbers

Specifications

65,000 / 82,000 / 86,000 BTU/hMaximum heat
71 / 66 / 67 %Efficiency · EPA
1.6 / 1.9 / 2.2 ft³Combustion chamber

The fire

EPA heat output
27,015 / 23,727 / 27,092 BTU/h
Maximum heat output
65,000 / 82,000 / 86,000 BTU/h
Nominal heat output
46,000 / 50,000 / 58,000 BTU/h (data sheet)
EPA efficiency
71 / 66 / 67 %
Particulate
1.5 / 1.7 / 1.8 g/h
Heating surface
1,400 / 1,650 / 2,100 ft²

The wood

Fuel
seasoned cordwood · logs 17 / 21 / 25″ max
Combustion chamber
1.6 / 1.9 / 2.2 ft³

The body

Sizes
58 / 68 / 78 · StûvGrey
Weight
180 / 205 / 228 lb
Casing
22-7/8 / 26-3/4 / 30-3/4″ w × 23-7/8″ h × 17-9/16″ d
Visible glass
17-5/8 / 21-5/8 / 25-5/8″ w × 16-9/16″ h
Frames · certs
Thin-edge · Picture 2″ · Picture 4″ · UL · ULC · EPA · CSA

The chimney

Chimney · outside air
6″ or 7″ liner · 4″ air

These are the numbers we install to — every number above is Stûv’s own published figure, nothing rounded by us, nothing guessed. Ask us for the maker’s data sheet (Stûv 16-in) and EPA reports — at the showroom. Or ask us anything at the showroom.

The Stûv Collection

One house, nine fires.

Real voices · 5.0 on Google

Installed by the crew people write about.

“…the knowledge and guidance we received in determining size, location and finishing design was invaluable.”

Phil M. · Google review

“As someone extremely particular and fussy I was very pleased.”

Josh R. · Google review

Quick answers

The three things everyone asks.

Do I need a chimney?

You have one — that’s the point. The 16-in slides into your existing masonry fireplace and vents through a 6″ or 7″ stainless liner per the maker’s install instructions. We sweep, line and install it WETT-certified.

Will it fit my fireplace?

Three widths (22-7/8″ to 30-3/4″) cover most masonry openings, and the three StûvGrey frames trim the reveal — thin-edge for a frameless look, 2″ or 4″ picture frames to cover more brick. Send us three measurements; we fit-check before any order.

What’s the upkeep?

Ash out, glass wiped via the removable key, one annual sweep — our trade, same crew that installs it.

What it costs

Priced to your home — not from a chart.

Every wall is different — framing, venting, gas line — so your price is real, not a guess.

Tell us about your wall

Two minutes online. Photos help; the booking machine takes them.

Get your real quote

Dan prices your exact install and walks you through every line of it.

Installed by the pros

Nick’s crew frames it to the maker’s spec, runs the venting, and leaves the room clean.

Request 2026 pricing

Or come see it in our Coldwater showroom — the espresso will be on.
