The Urbana U70 Tall Bay burning on a black studio void — three-sided glass, driftwood fire

U70 Tall Bay

Fire, from any angle.

Gas  ·  5.0 on Google  ·  TSSA-registered installs

Urbana · U70 Tall Edition

The three-sided one.

Urbana’s bay firebox in its tall edition — 2,637 square inches of glass, wrapped corner to corner.

I

Three sides of glass

Front and both sides — one wrap of fire, the corners sealed glass to glass. In Urbana’s words: “No Steel Pillars.”

II

Nothing between you

“Double Glass Safety” — “a second layer of ultra clear glass,” no screen required, and “no gaps” top to bottom.

III

An ember bed that performs

Driftwood or split logs, river rock, glass or shale — under optional LED lighting whose “color is adjustable and can be controlled via a mobile app.”

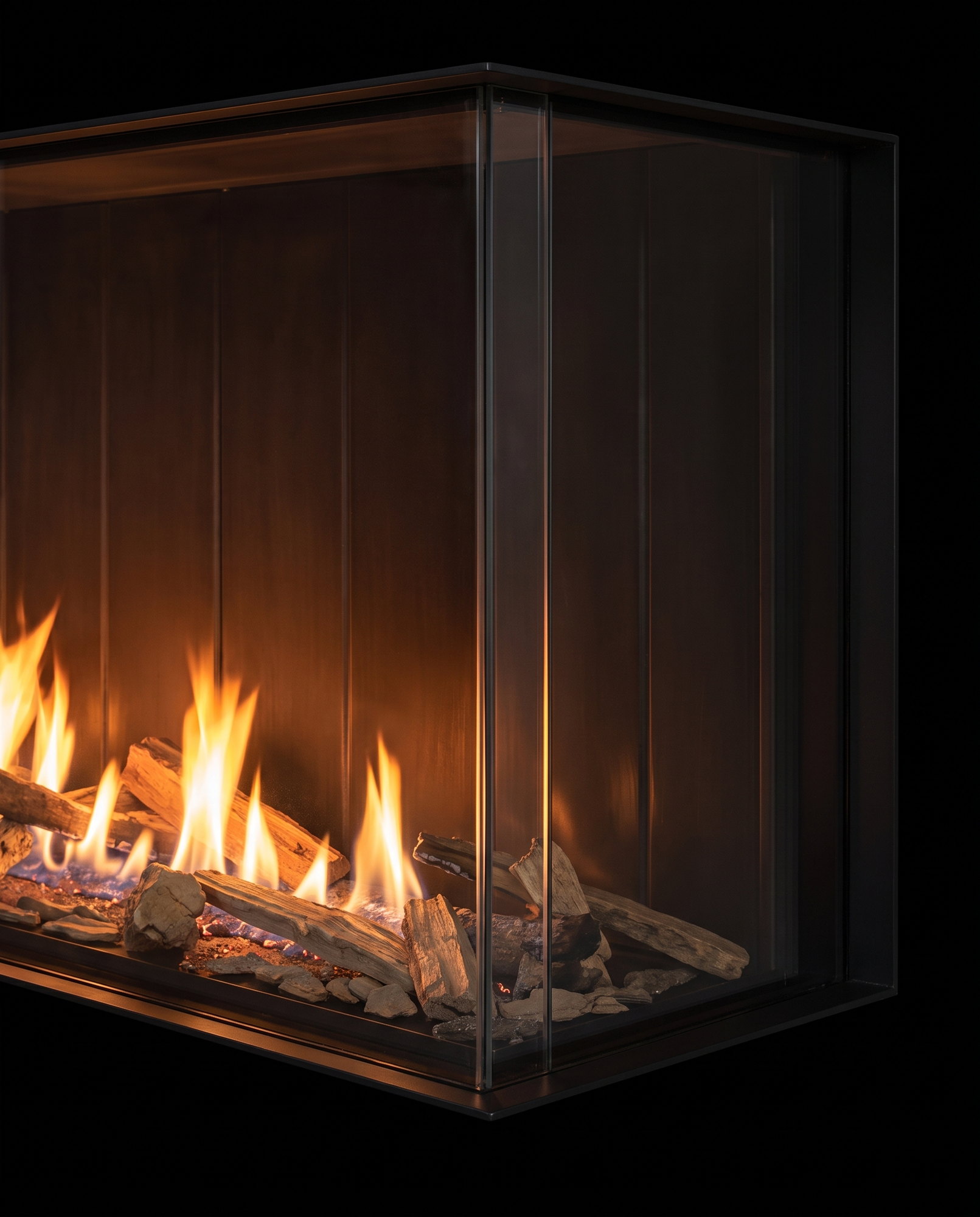

The glass-to-glass corner, fire behind both panes
Glass to glass · no pillars

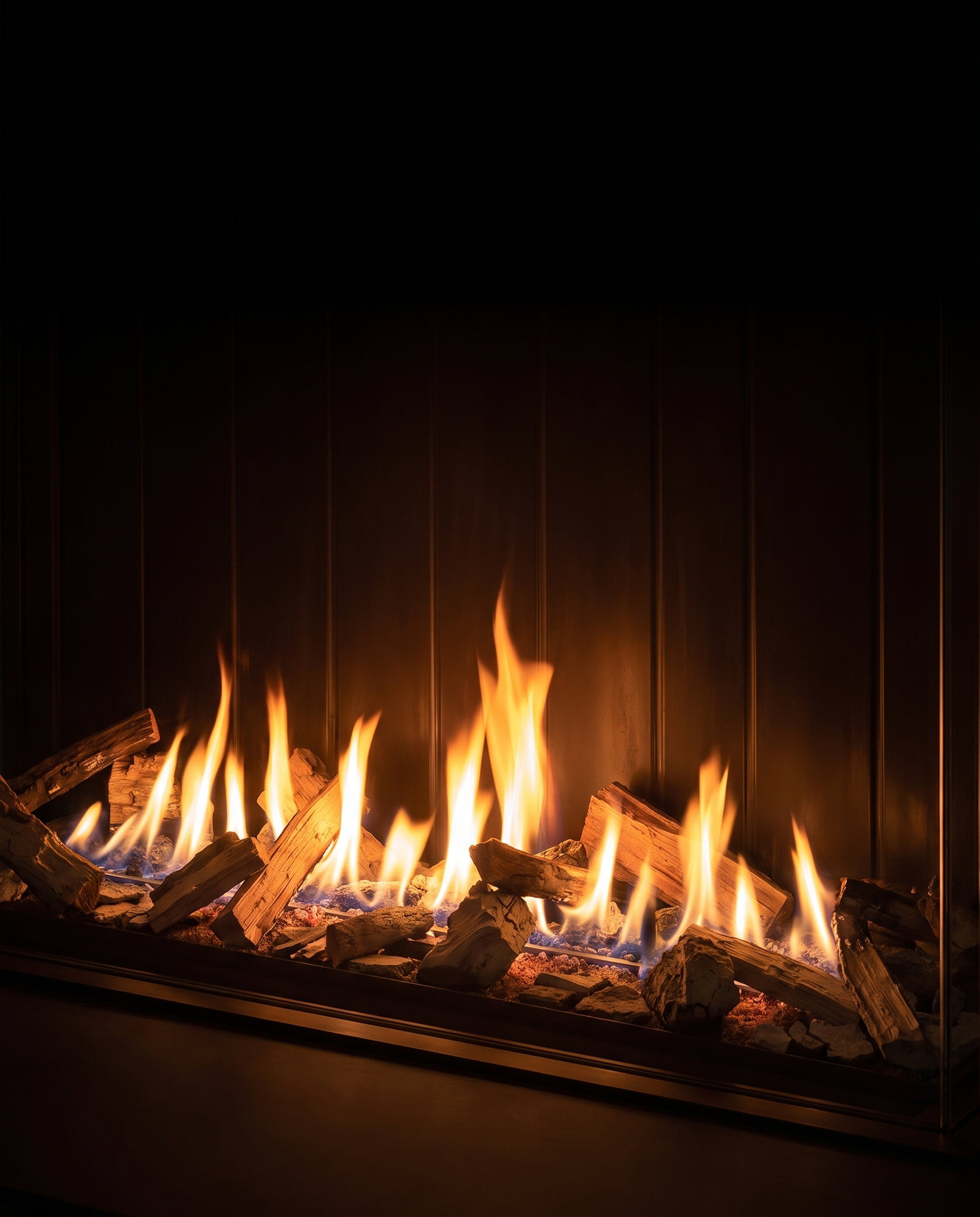

The driftwood fire and pale ember strip, up close
Driftwood · ember strip

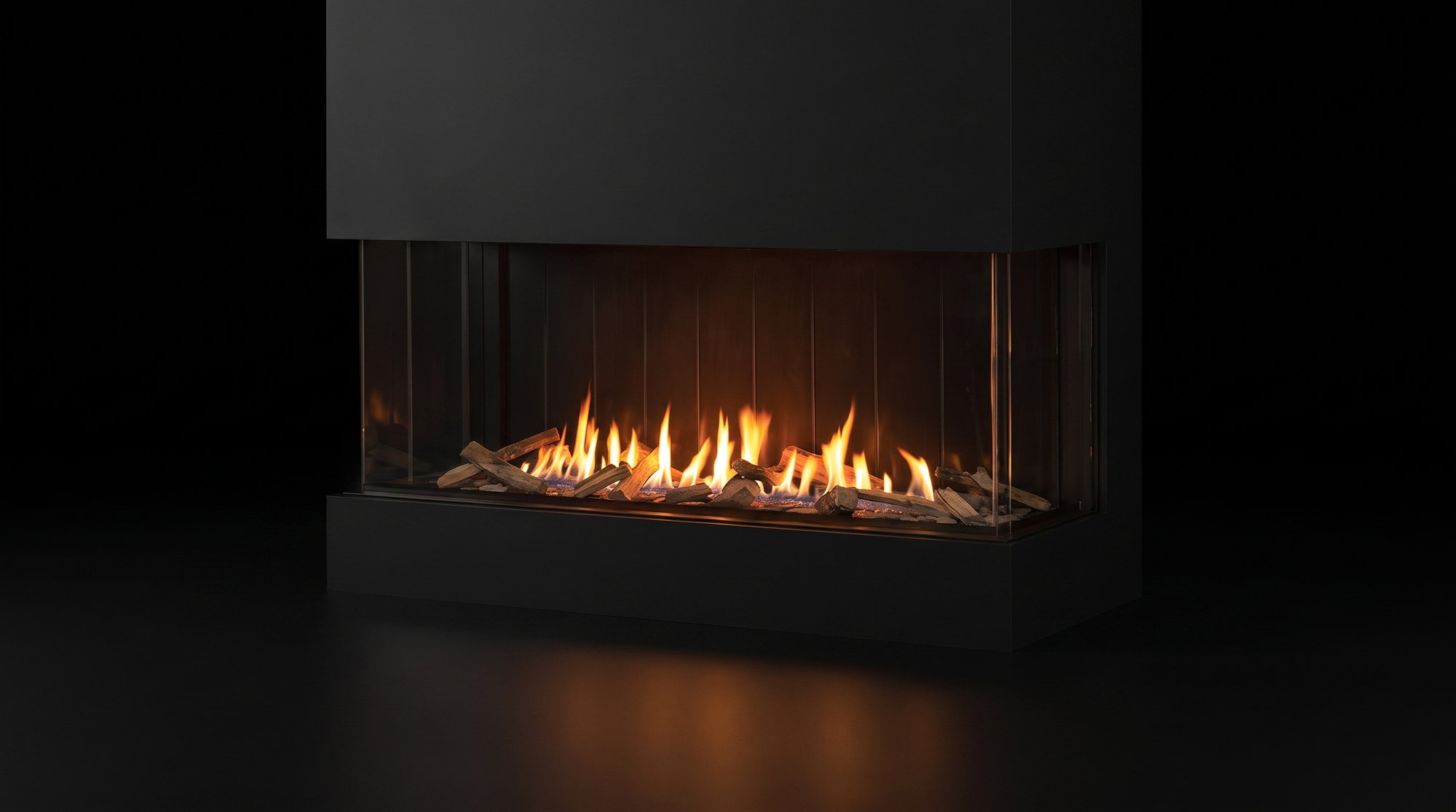

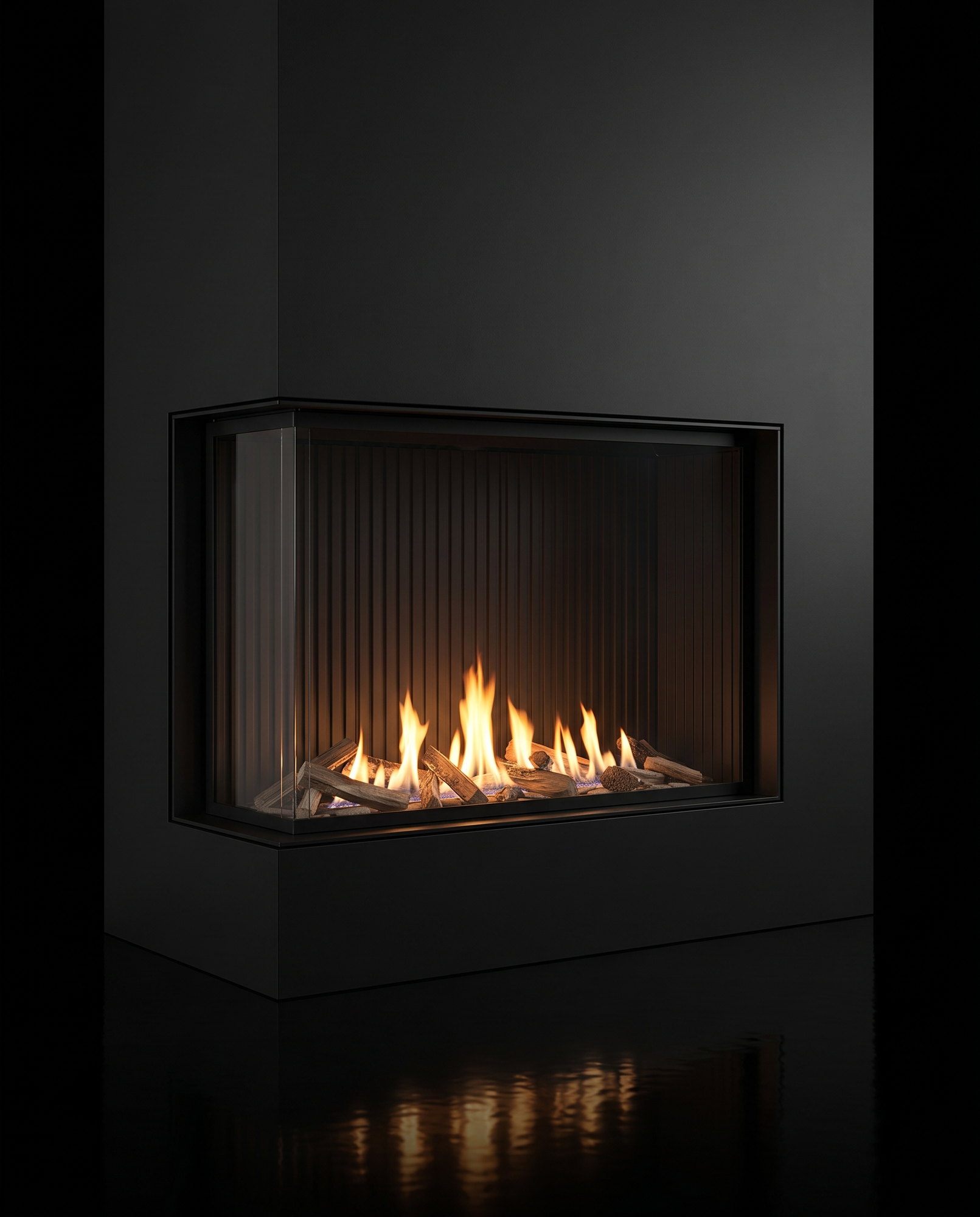

The three-sided wrap from the left, on the black void
Three sides · 26⅜″ view

Photography: Urbana

Seen in real rooms.

From our Urbana files — in place, and the fire up close. Tap to step inside.

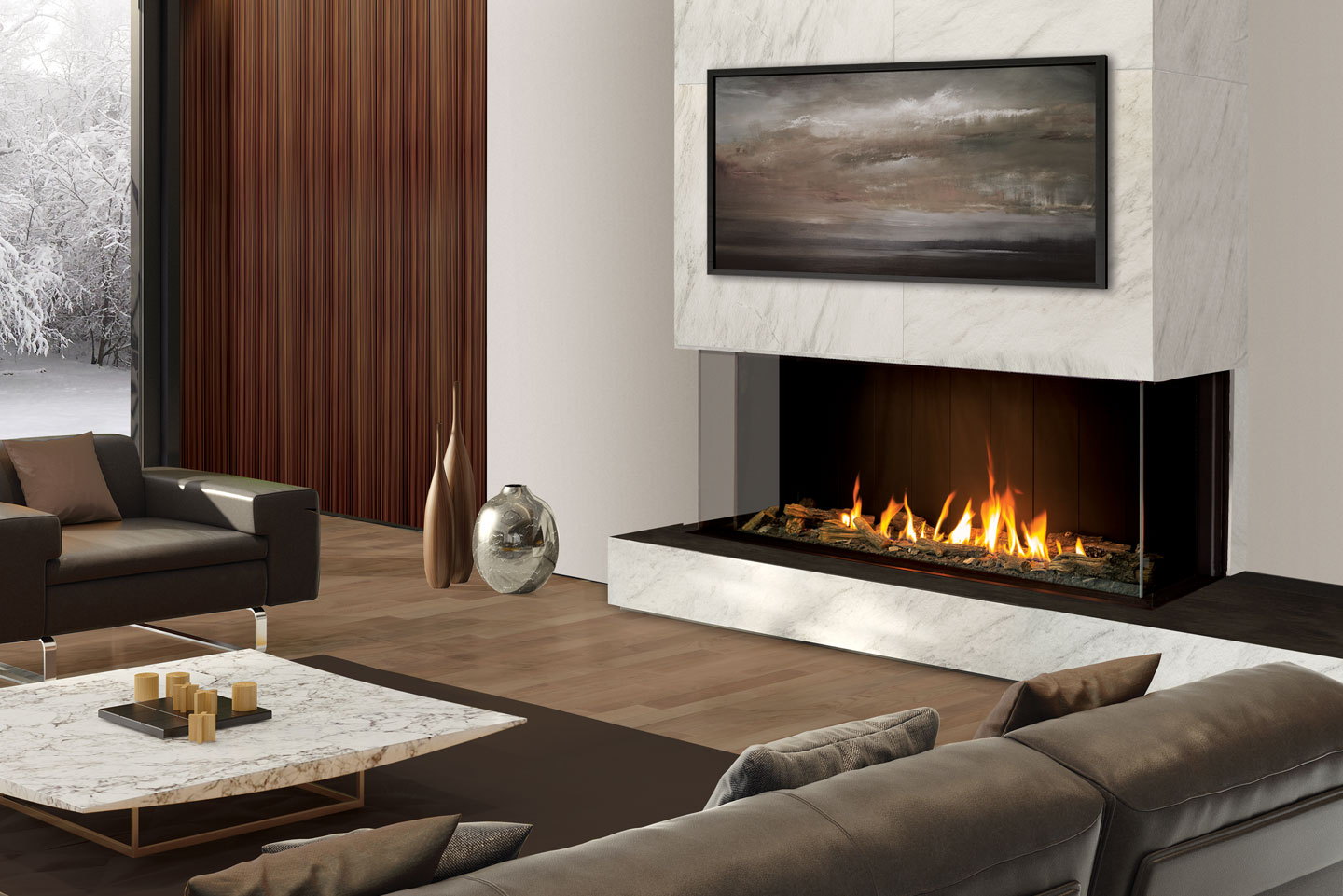

The marble wall, corner cut

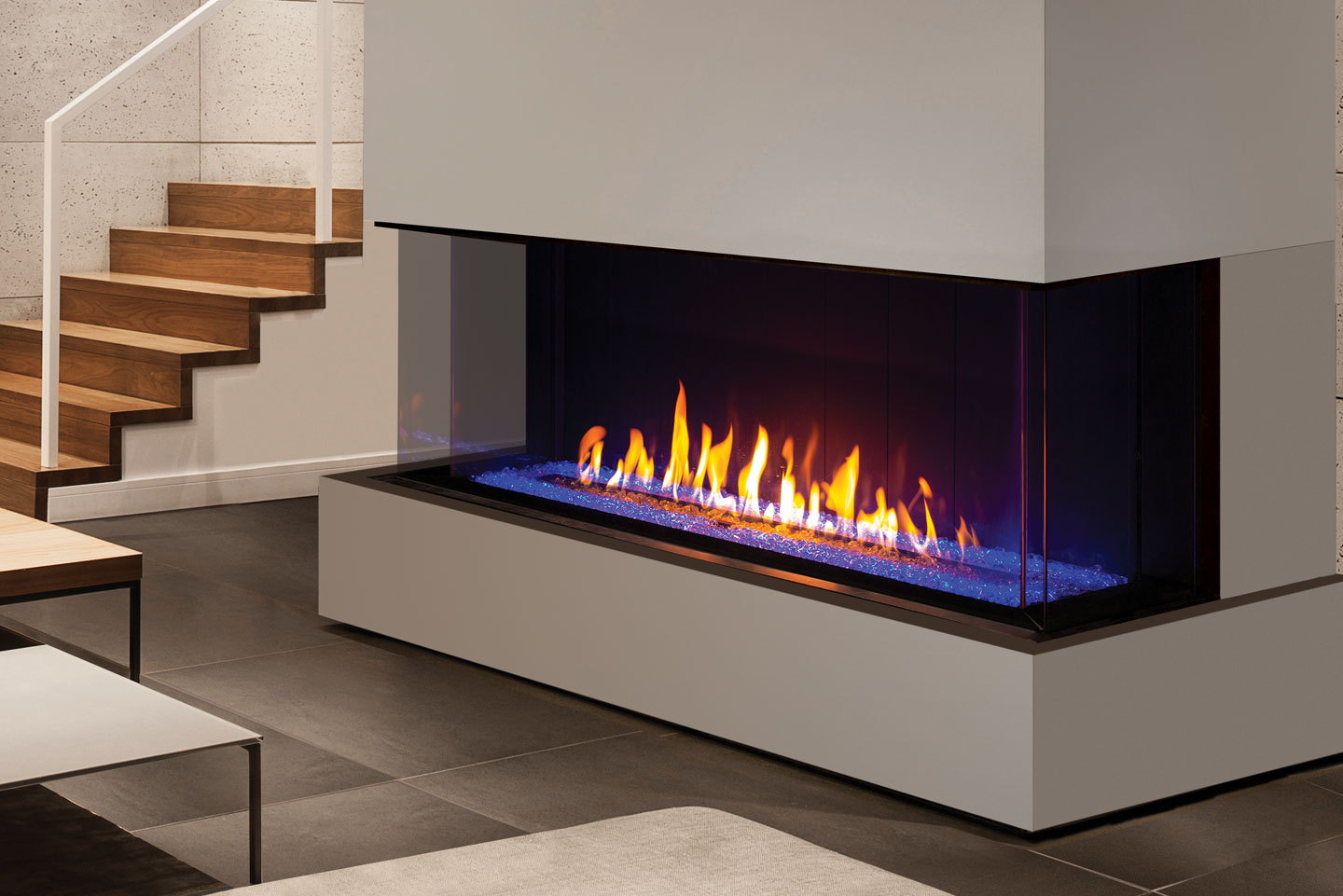

Blue flame under the stair

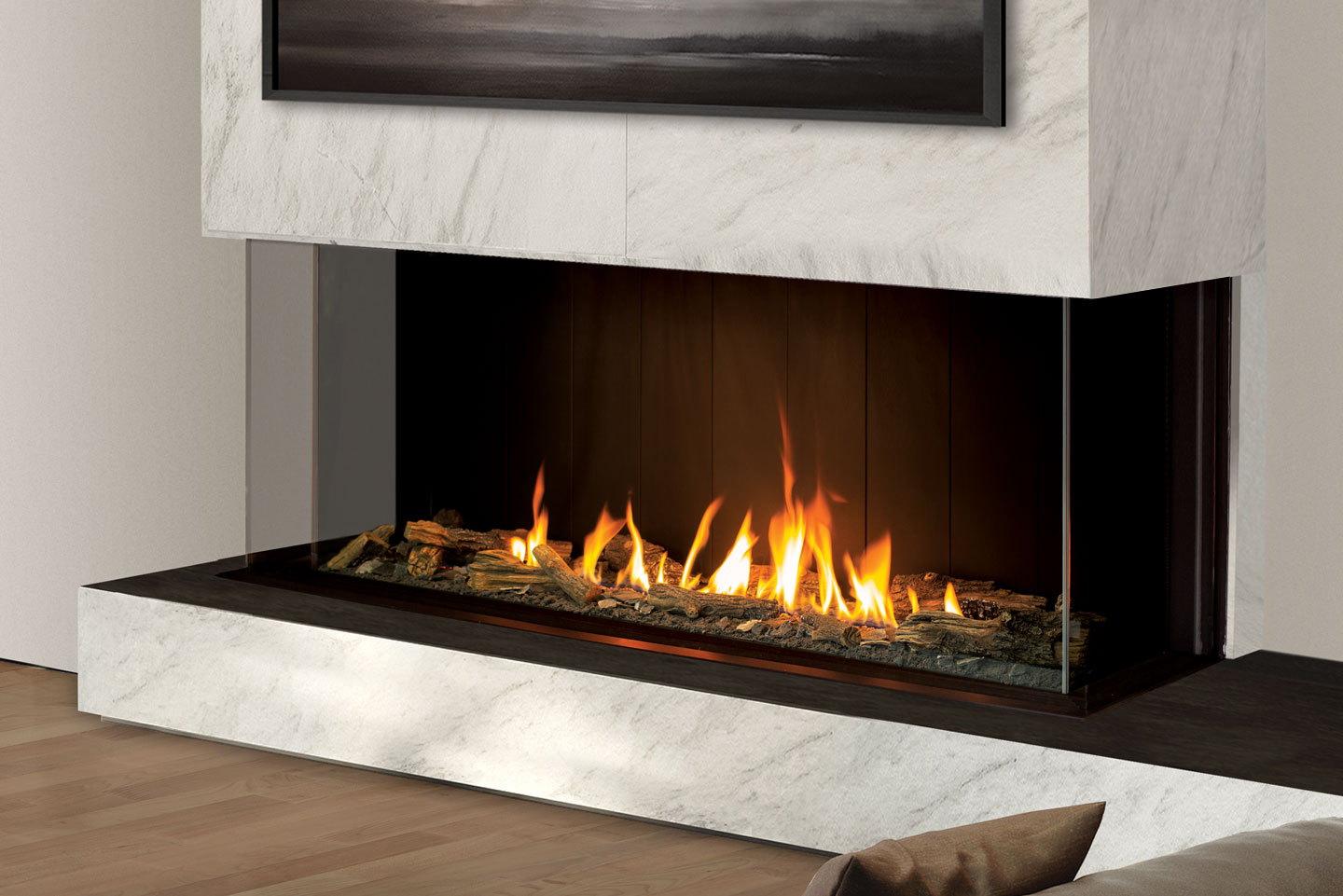

White stone, tall burn

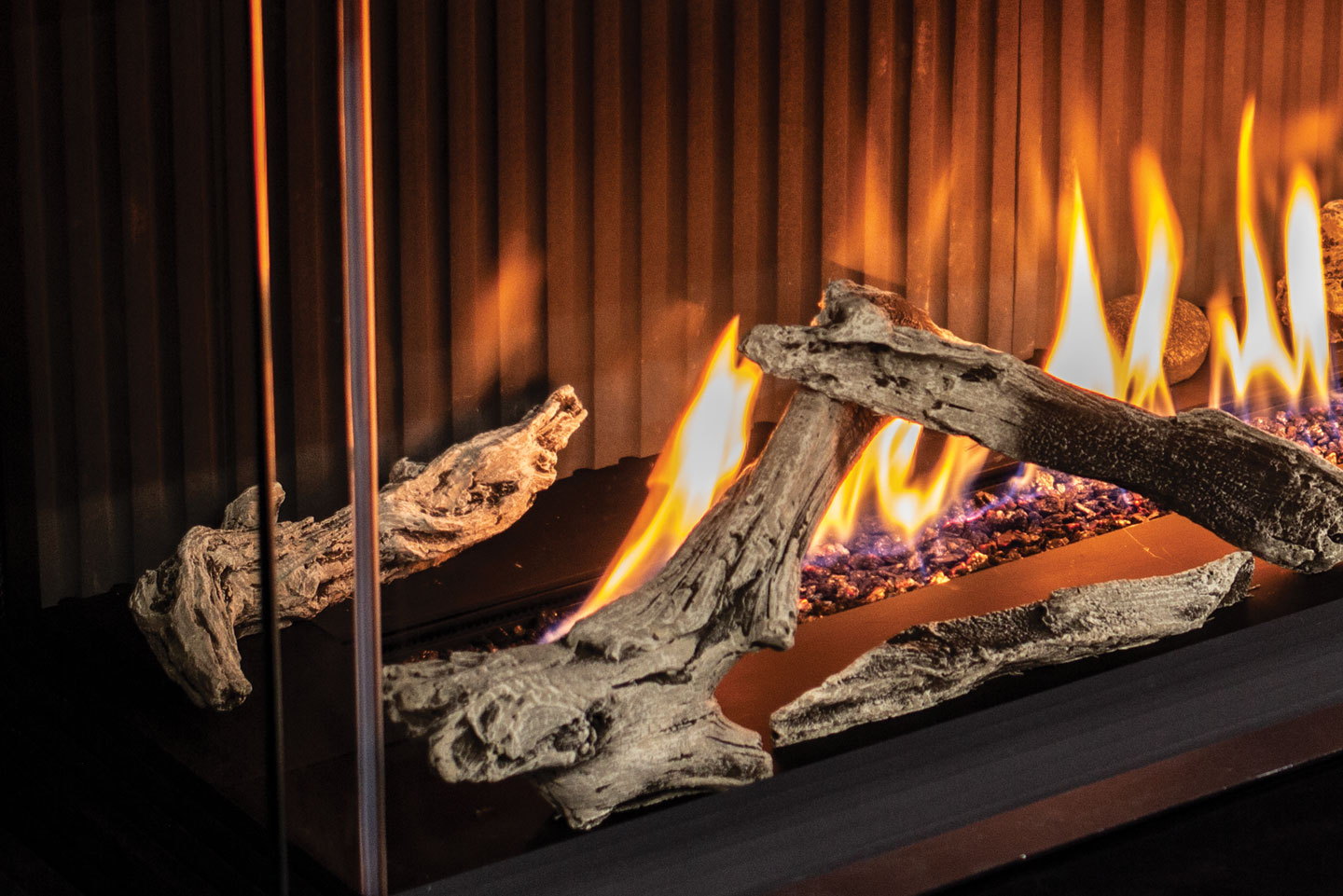

Driftwood, corner glass

Will it fit?

70 inches of fire, three sides deep.

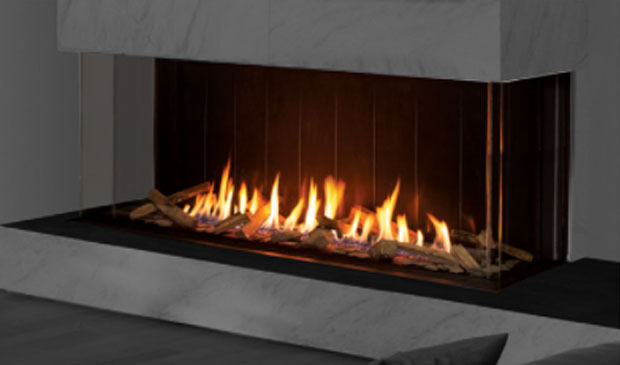

Urbana's own render of the U70 Tall Bay — three-sided glass, driftwood fire
26⅜″ of glass 70¾″ framing width
52,500BTU/h max input
2,637 sq inof three-sided glass
NG · LPnatural gas or propane
95⅛″minimum floor-to-ceiling

The maker’s numbers

Specifications

52,500 BTU/hMaximum heat
three-sided · 2,637 sq inGlass viewing area
70¾″Framing width

The fire

Fuel
natural gas or propane
Max input
52,500 BTU/h
Min input
39,000 BTU/h NG · 43,000 LP
Efficiency (maker’s figure)
66.43%

The look

Firebox media
driftwood or split logs · river rock · glass · shale

The opening

Glass
three-sided · 2,637 sq in
Front glass
70″ w × 26⅜″ h
Side glass
15″ w × 26⅜″ h each
Framing width
70¾″
Framed opening height
43⅝″
Min framing depth
21″

The hookup

Electrical
120 VAC · 15 A dedicated circuit
Venting
direct vent · 5″ × 8″ co-axial

These are the numbers we install to — every number above is Urbana’s own published figure, nothing rounded, nothing guessed. Download the maker’s installation manual, or ask us anything at the showroom.

The U70 family

Pick your view.

Real voices · 5.0 on Google

Installed by the crew people write about.

“…the knowledge and guidance we received in determining size, location and finishing design was invaluable.”

Phil M. · Google review

“As someone extremely particular and fussy I was very pleased.”

Josh R. · Google review

Quick answers

The three things everyone asks.

Will it fit my wall?

It frames at 70¾″ wide with a 43⅝″ opening height and 21″ of depth, and the tall edition wants 95⅛″ floor-to-ceiling. Send us a photo of your wall and we’ll confirm the fit before you spend a dollar.

Is it really open on three sides?

Yes — the front and both sides are glass, corners sealed glass to glass with “no steel pillars,” in Urbana’s words. “Double Glass Safety” keeps the outer surface guarded, no screen required.

What’s the upkeep?

No wood to haul, no ash to sweep. Like any gas fireplace it wants an annual service — that’s our trade, and the crew that installs it does it.

What it costs

Priced to your home — not from a chart.

Every wall is different — framing, venting, gas line — so your price is real, not a guess.

Tell us about your wall

Two minutes online. Photos help; the booking machine takes them.

Get your real quote

Dan prices your exact install and walks you through every line of it.

Installed by the pros

Nick’s crew frames it to the maker’s spec, runs the venting, and leaves the room clean.

Request 2026 pricing

Or come see it in our Coldwater showroom — the espresso will be on.
