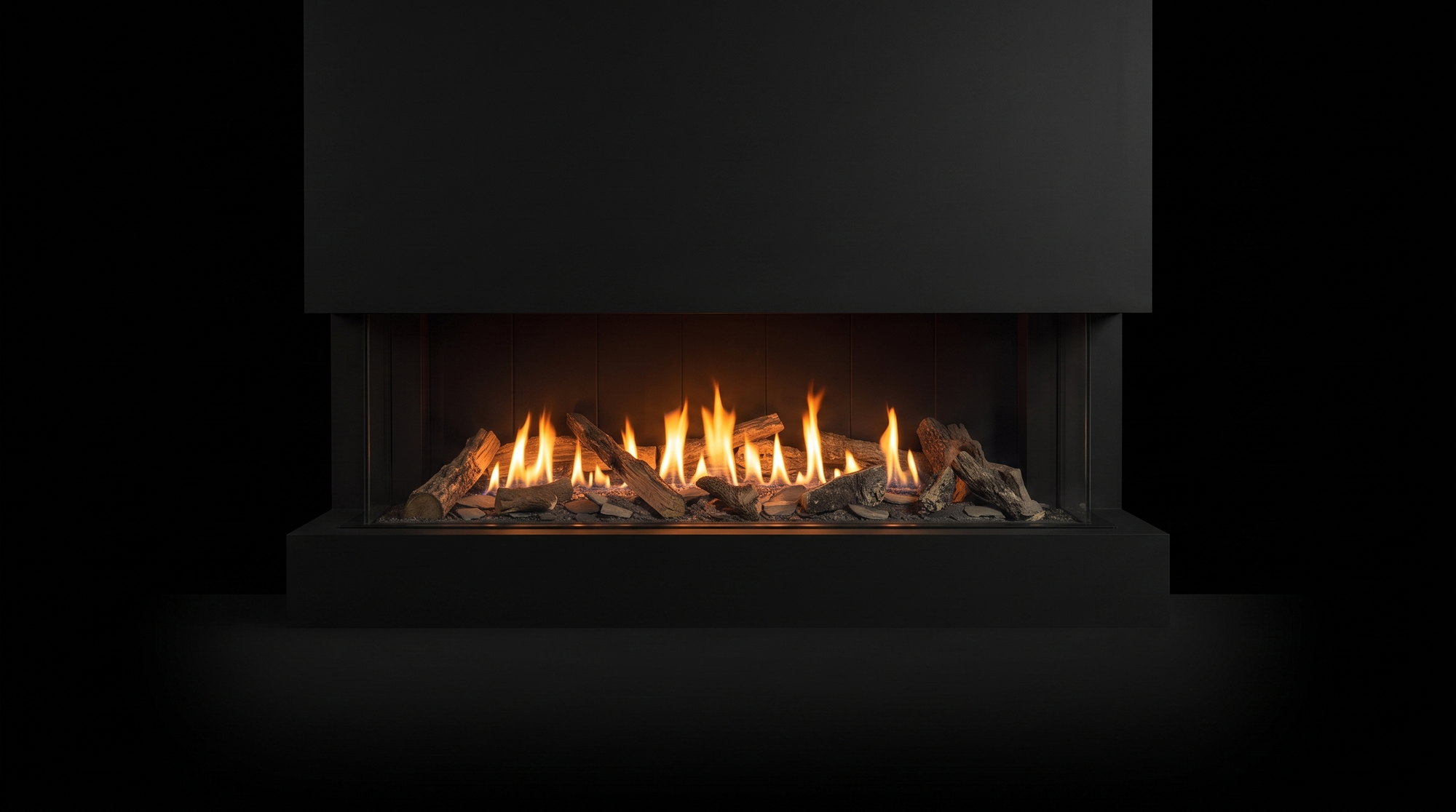

The Urbana U50 Bay head on in a black studio void — a long low band of log fire wrapped on three sides

U50 Bay

The long, low band of fire.

Gas  ·  5.0 on Google  ·  TSSA-registered installs

Urbana · U50 Series

The middle bay, built low and wide.

Fifty inches of glass in a band two and a half times wider than it is tall — wrapped on three sides.

I

A band, not a box

The 50 × 20 window is the widescreen of the bay family — a long ribbon of flame that wraps both corners glass to glass.

II

Nothing between you

“Double Glass Safety” — a second layer of glass, “no screen required,” and “Seamless Top to Bottom Glass (no gaps).”

III

Your bed, your light

Split logs over shale, driftwood, or river rock — under “Adjustable Ember Bed Color LED Lights” and a top lighting kit on every unit.

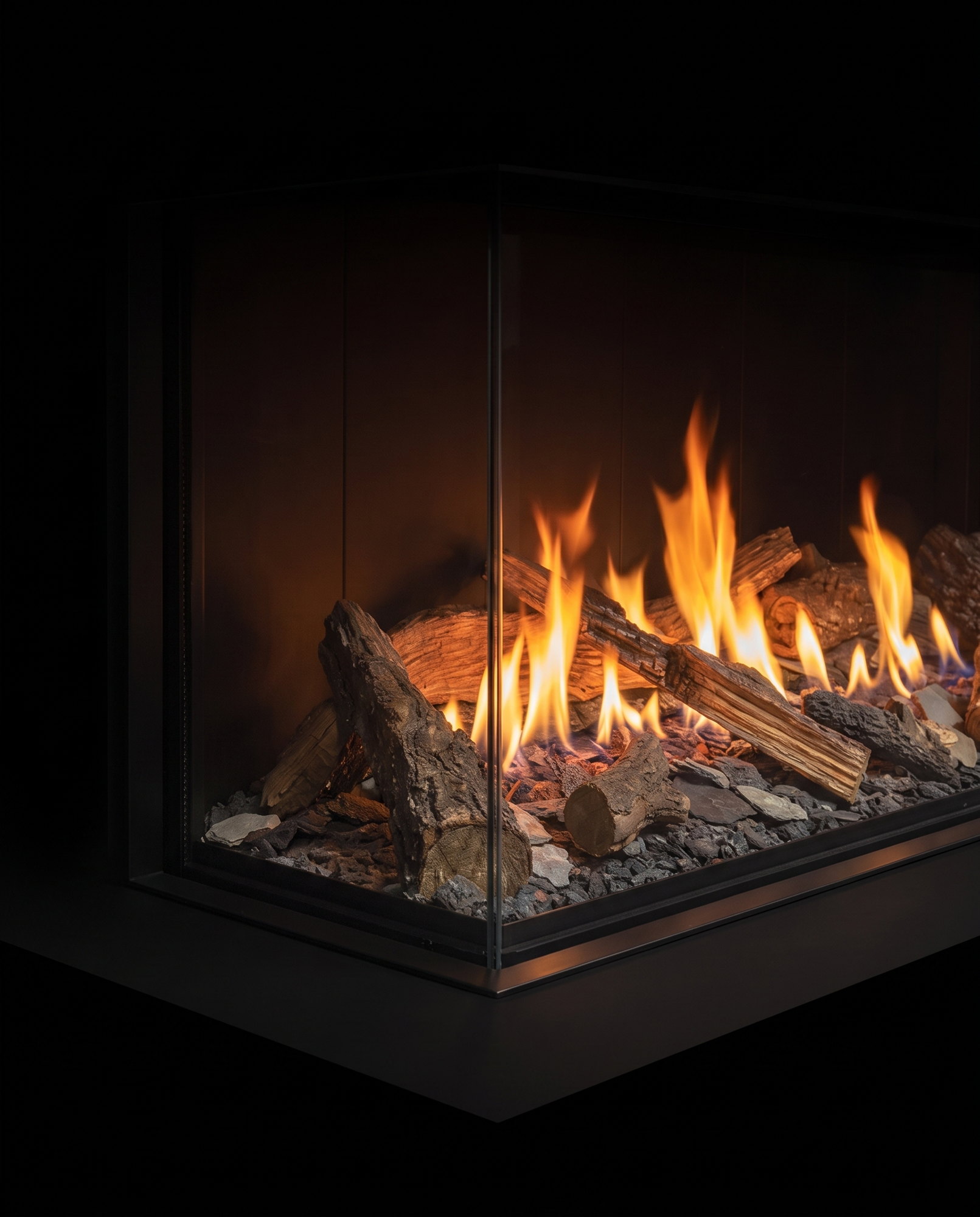

The glass-to-glass corner of the U50 Bay, log fire over shale running through it
Glass to glass · no pillars

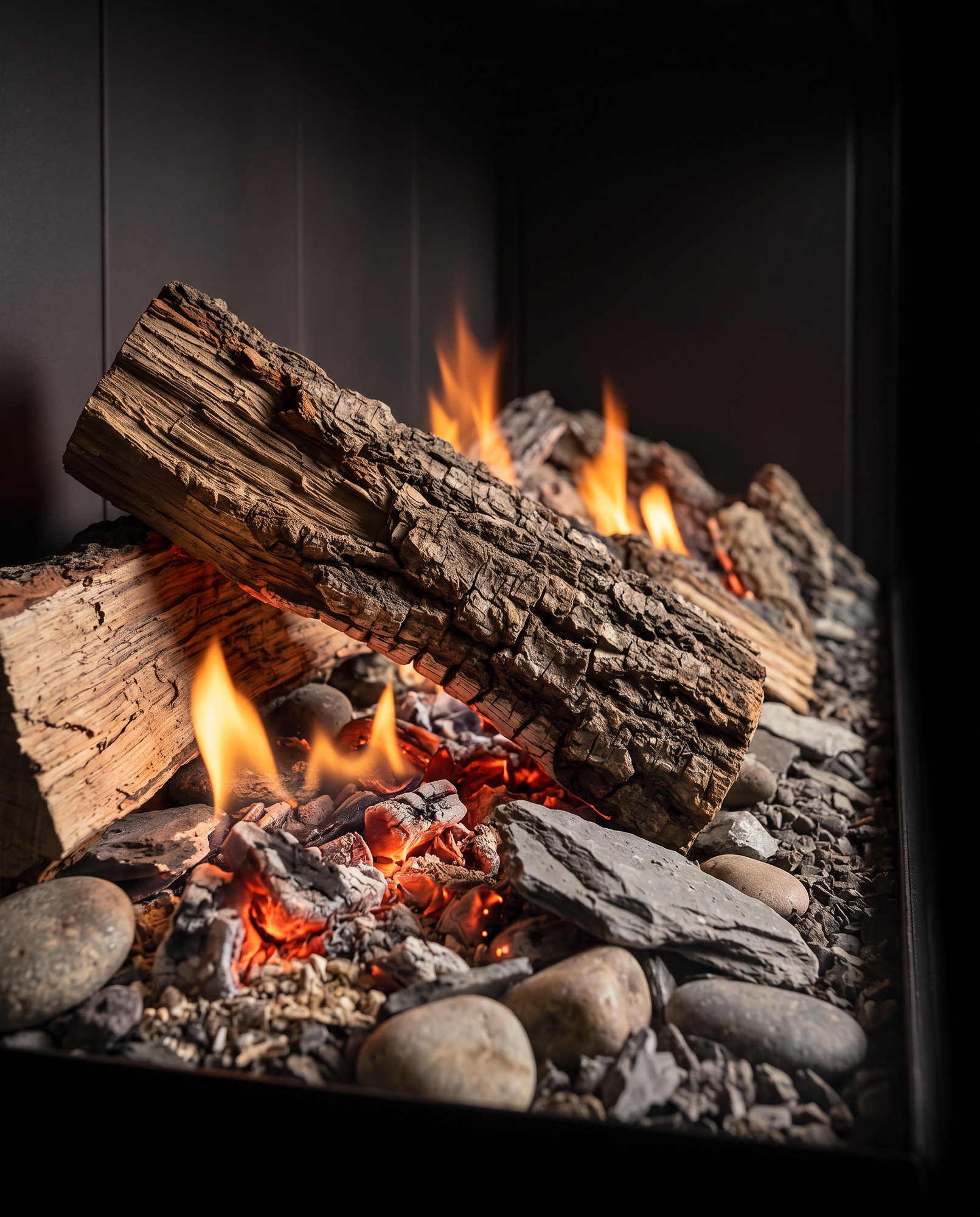

The U50 Bay’s split logs over shale slabs and river stone, embers glowing
Logs on shale · ember glow

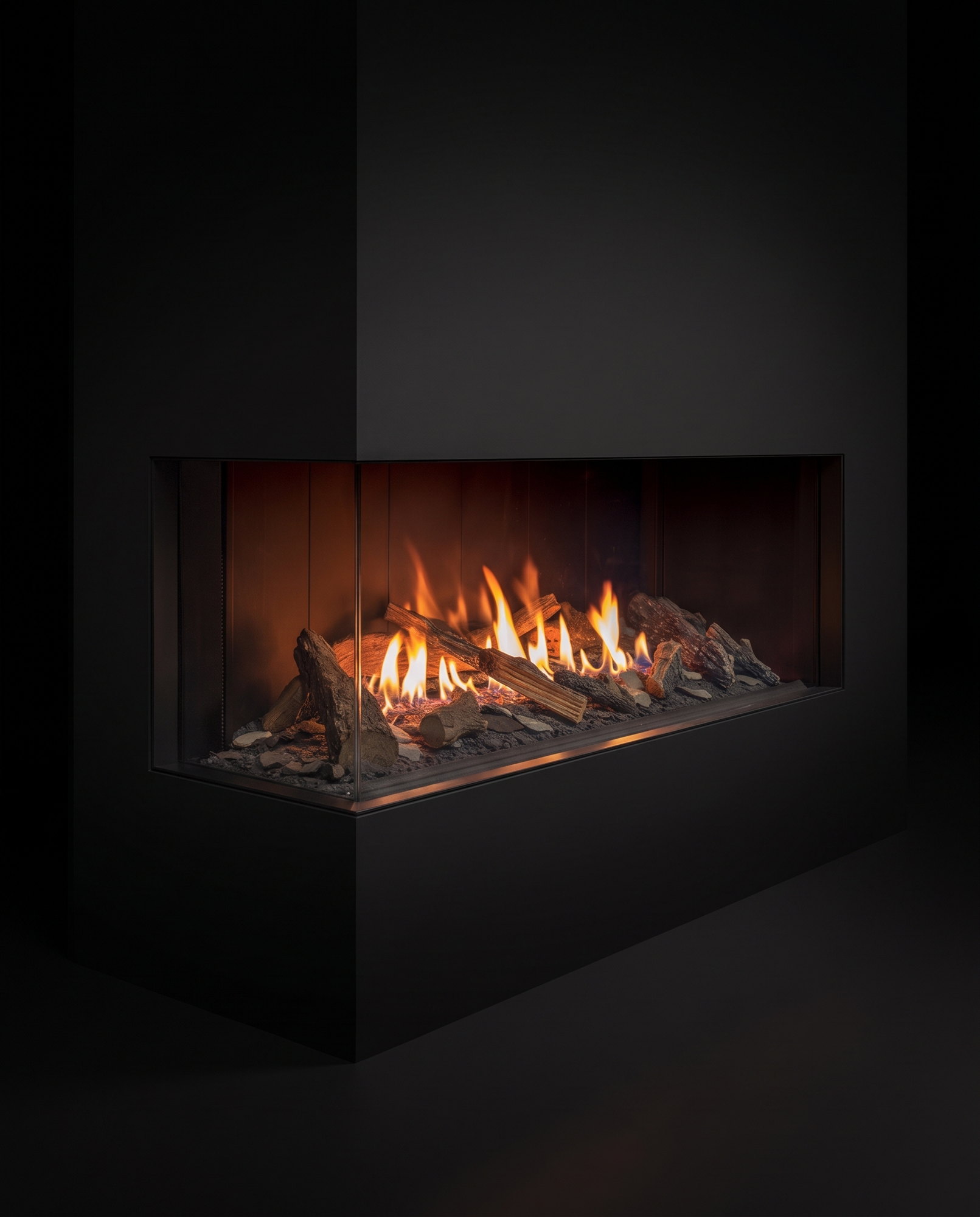

The U50 Bay at a three-quarter view — the low wide band wrapping its corner
The wrap · 20″ view

Photography: Urbana

Seen in real rooms.

From our Urbana files — in place, and the fire up close. Tap to step inside.

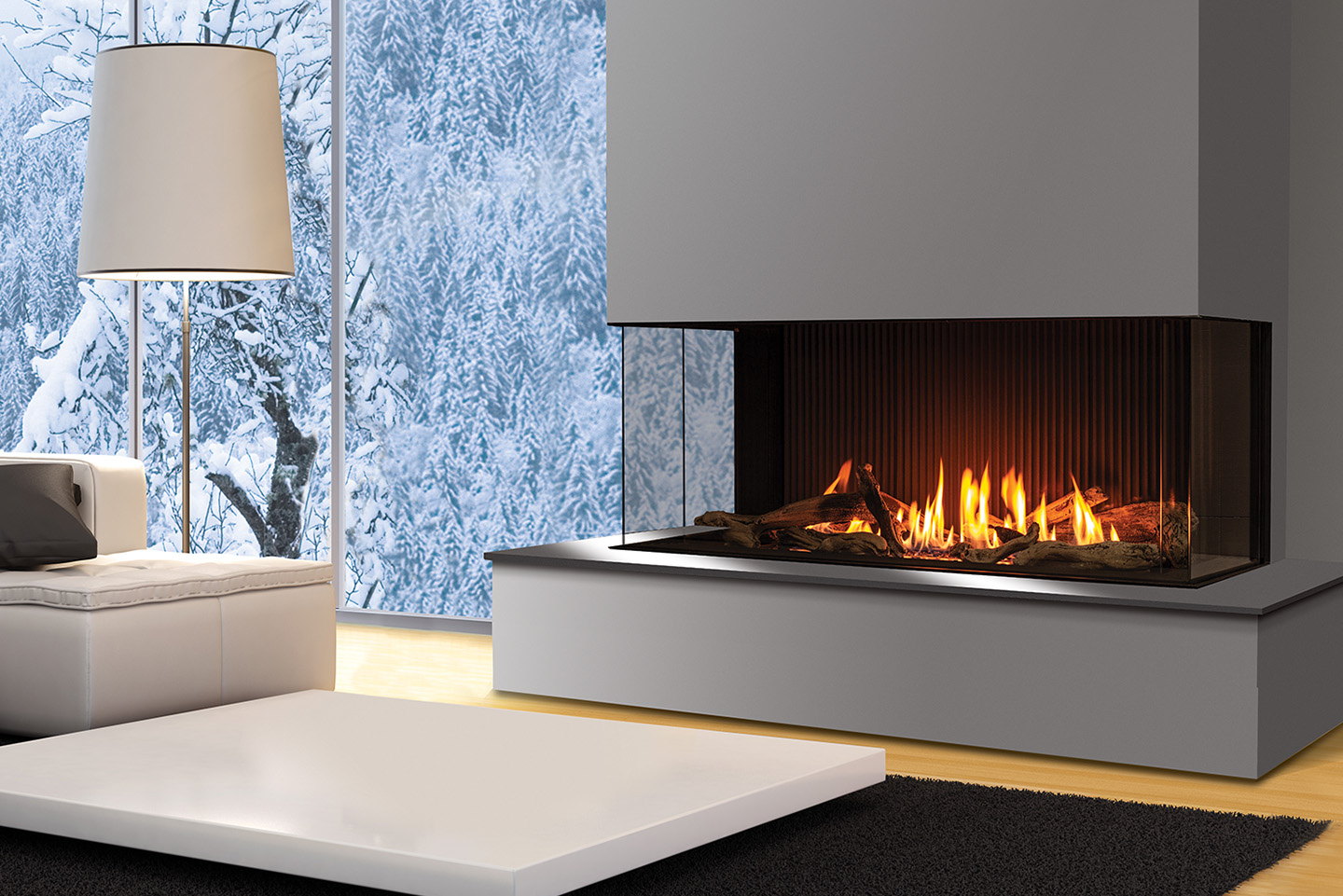

Winter, three sides of glass

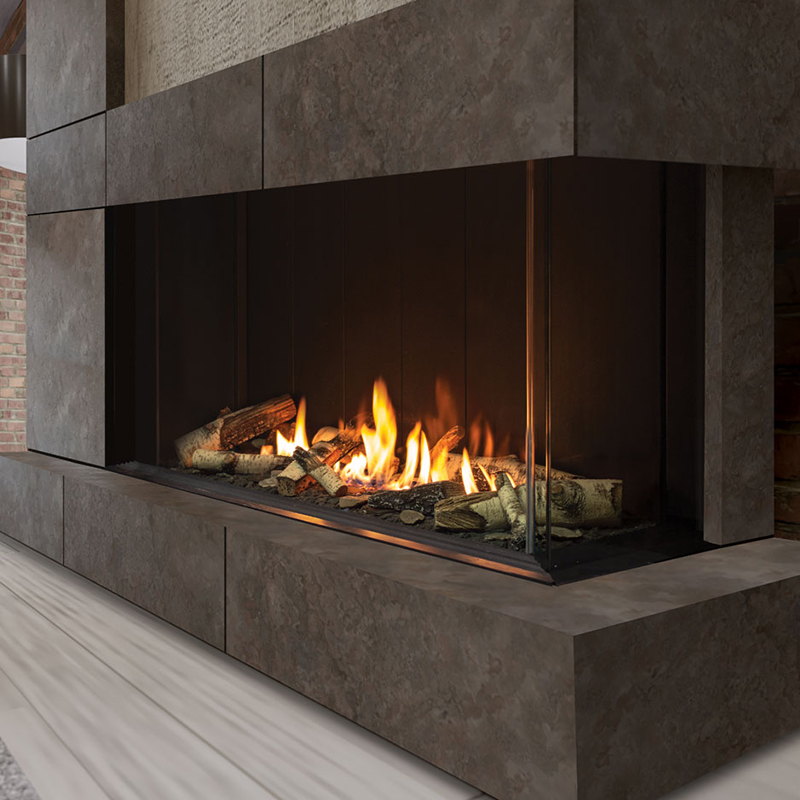

The corner, in charcoal tile

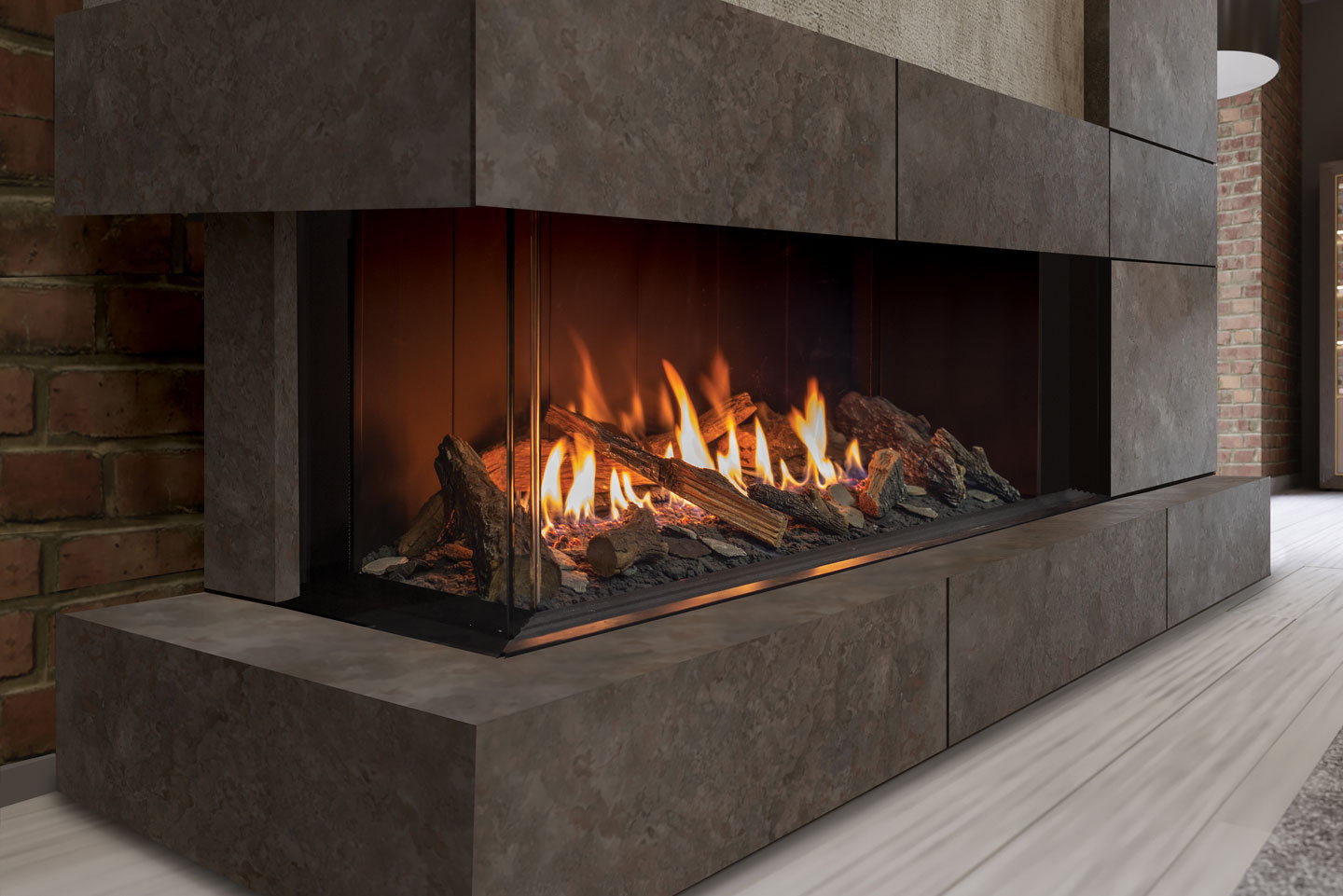

Wrapped in dark stone

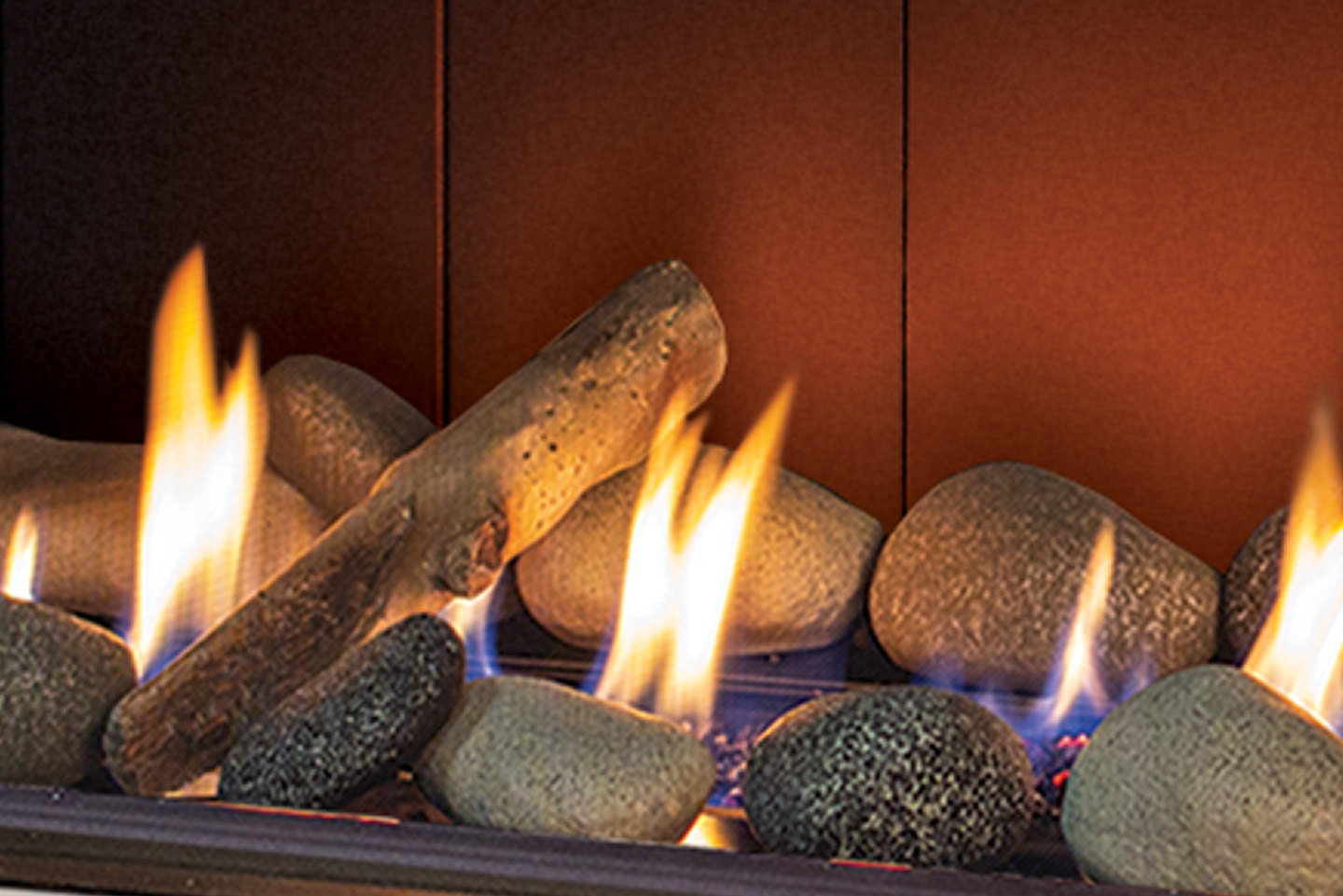

Stones on the burn

Will it fit?

Fifty inches, three sides.

The U50 Bay’s full band of fire at a three-quarter view, on the black void
20″ of glass (rounded) 50¾″ framing width
38,000BTU/h max input
50 × 20″window (maker’s rounded)
NG · LPnatural gas or propane
88½″minimum floor-to-ceiling

The maker’s numbers

Specifications

38,000 BTU/hMaximum heat
three-sided · 50″ w × 20″ hGlass viewing area
50¾″Framing width

The fire

Fuel
natural gas or propane
Max input
38,000 BTU/h
Min input
25,000 BTU/h NG · 32,000 LP
Efficiency (maker’s figure)
67.7%

The look

Firebox media
logs · driftwood · river rock · shale

The opening

Glass (maker’s rounded)
three-sided · 50″ w × 20″ h
Framing width
50¾″
Framed opening
37″ h
Min framing depth
21″
Min floor-to-ceiling
88½″

The hookup

Electrical
120 VAC · 15 A dedicated
Venting
direct vent · 5″ × 8″ co-axial

These are the numbers we install to — every number above is Urbana’s own published figure, nothing rounded by us, nothing guessed. Download the maker’s installation manual, or ask us anything at the showroom.

The U50 family

Pick your view.

Real voices · 5.0 on Google

Installed by the crew people write about.

“…the knowledge and guidance we received in determining size, location and finishing design was invaluable.”

Phil M. · Google review

“As someone extremely particular and fussy I was very pleased.”

Josh R. · Google review

Quick answers

The three things everyone asks.

Will it fit my wall?

It frames at 50¾″ wide with 21″ of depth, and wants 88½″ floor-to-ceiling. Send us a photo of your wall and we’ll confirm the fit before you spend a dollar.

Is it really open on three sides?

Yes — the front and both sides are glass, corners sealed glass to glass. “Double Glass Safety” keeps the outer surface guarded, “no screen required.”

What’s the upkeep?

No wood to haul, no ash to sweep. Like any gas fireplace it wants an annual service — that’s our trade, and the crew that installs it does it.

What it costs

Priced to your home — not from a chart.

Every wall is different — framing, venting, gas line — so your price is real, not a guess.

Tell us about your wall

Two minutes online. Photos help; the booking machine takes them.

Get your real quote

Dan prices your exact install and walks you through every line of it.

Installed by the pros

Nick’s crew frames it to the maker’s spec, runs the venting, and leaves the room clean.

Request 2026 pricing

Or come see it in our Coldwater showroom — the espresso will be on.
